Controlling Pipe Flaring During Grooving: Cause Analysis and Technical Solutions
- Share
- Issue Time
- Sep 1,2025
Summary
Through scientifically informed methods and purpose-built equipment, flaring can be kept within standardized tolerances. Gruvmaster’s research into metal forming mechanisms has led to optimized machine designs and operational parameters, guaranteeing reliable groove quality, faster installation, and less rework.

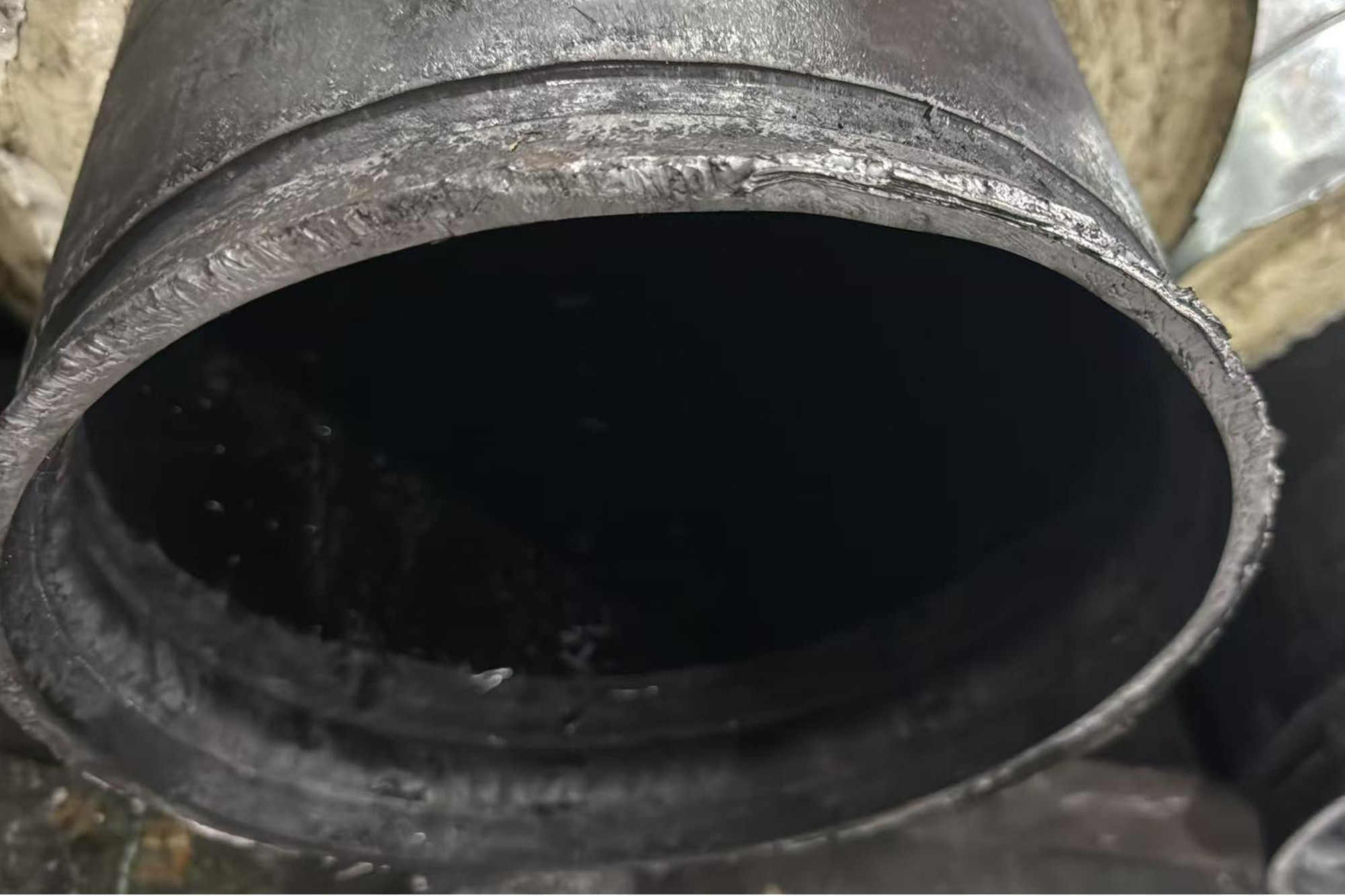

Recently, a contractor from Southeast Asia shared this photo (see first image in attachments) with us. They were working on a 10-inch Schedule 40 carbon steel pipe and noticed significant flaring after grooving—enough to raise concerns about coupling fit and seal integrity. The grooving machine used was a standard model commonly available in the market.


They asked us two direct questions:
· What caused this level of flaring?
· Could a Gruvmaster machine have prevented it?
Flaring of this nature typically results from two main factors: inconsistent pipe support during grooving and, more importantly, a groover that lacks the structural rigidity needed for high-load applications on thick-walled pipe. SCH40 material requires equipment that remains stable under pressure, without flexing or vibrating.
At Gruvmaster, our systems are specifically engineered to handle these challenges. With a reinforced drive axle, an optimized groove profile, and superior stability, our machines are designed to control flaring—even on large-diameter, heavy-wall pipes—delivering consistent, compliant grooves every time.
So, the answer to our client’s question is clear: Yes. This is exactly the type of problem Gruvmaster helps prevent.
Pipe Flaring: A Natural Process—Mastered by Gruvmaster
Industry professionals understand that some degree of flaring is natural during grooving. However, excessive flaring can lead to misaligned couplings, sealing failures, and costly rework.
Through scientifically informed methods and purpose-built equipment, flaring can be kept within standardized tolerances. Gruvmaster’s research into metal forming mechanisms has led to optimized machine designs and operational parameters, guaranteeing reliable groove quality, faster installation, and less rework.
Why Flaring Occurs: It Comes Down to Pipe Support and Groover Design
1.Operation: Check Your Setup
The most common cause of flaring is improper pipe support. If the pipe isn’t level—particularly if the end being grooved is higher than the support—the downward force from the grooving roller can lift the pipe, resulting in uneven metal forming and excessive flaring.
✅ Simple fix: Always ensure the pipe is fully supported and level. A quick check can save hours of rework.
2.Design: Not All Groovers Are Created Equal
Flaring isn’t just an operational issue—it’s also a matter of engineering. Key factors include the diameter of the drive axle and the width of the groove guide.
▶ Low-cost or worn groovers often have thin drive axles and wide grooves. This setup flexes under load, causing vibration (“chatter”), tearing the metal, and pushing material outward—leading to irregular, oversized flares.

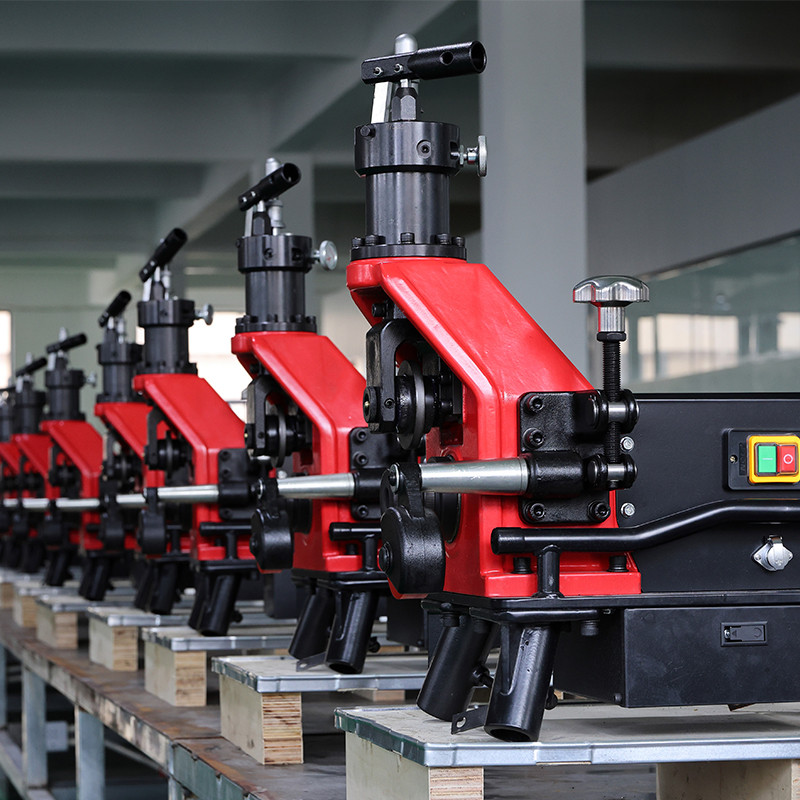

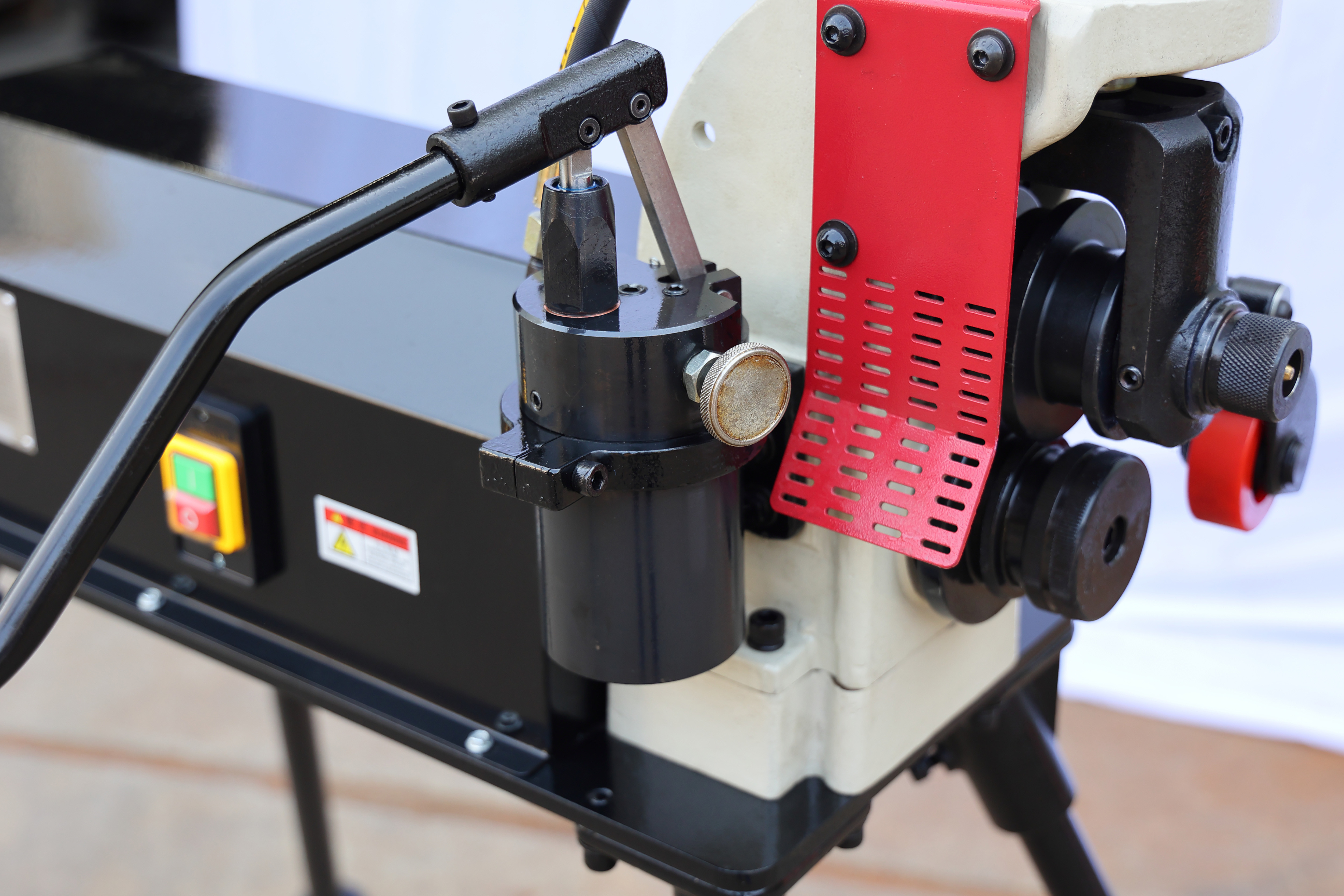

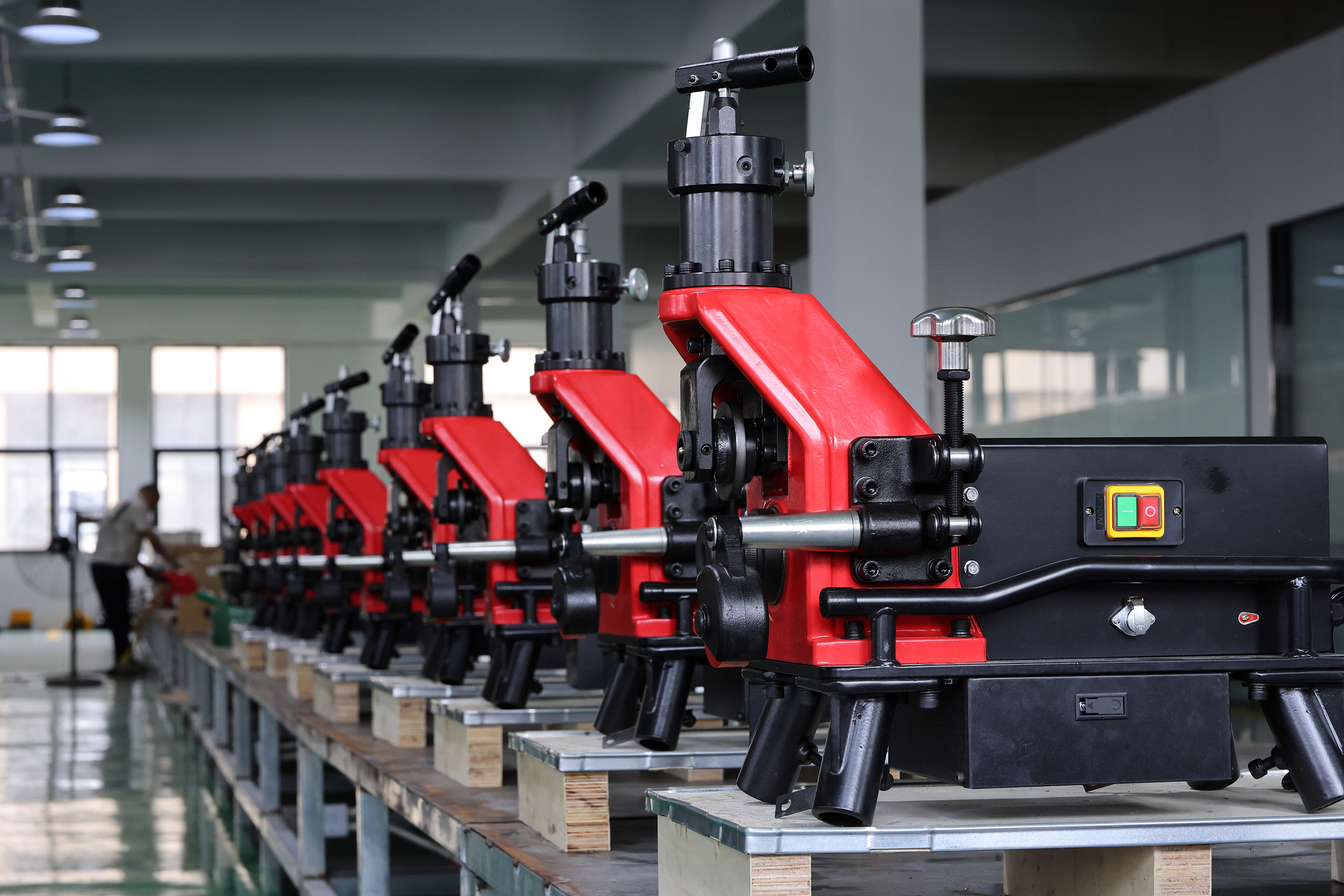

▶ Gruvmaster machines feature a larger, heavier-duty drive axle and a precision-sized groove. This robust construction eliminates flex and chatter, producing clean grooves with minimal, consistent flaring—every time.

When Flaring Becomes a Problem:

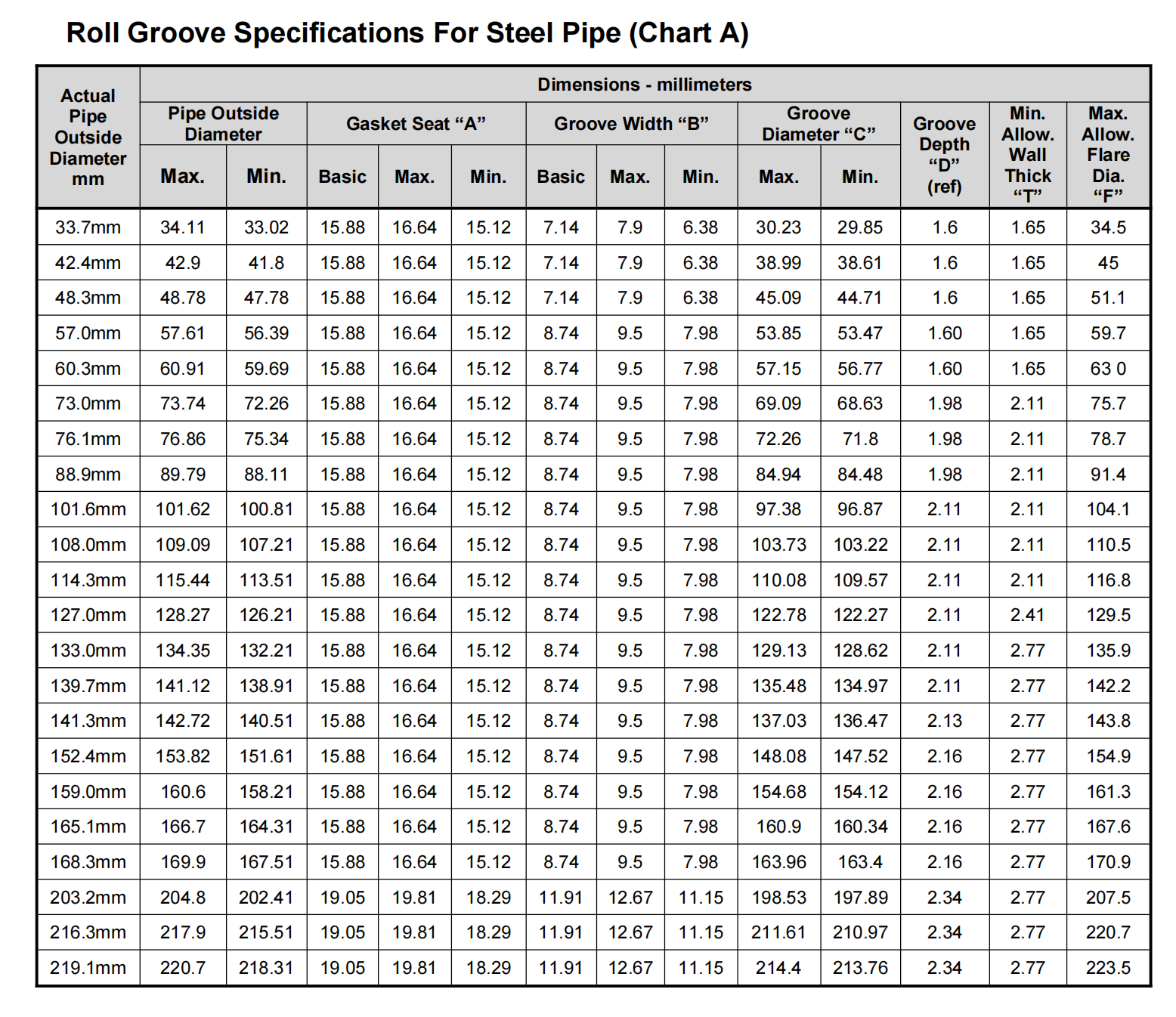

A slight, uniform flare is acceptable and within code. But excessive flaring leads to:
· Misaligned couplings → leaks from the start
· Time wasted forcing fittings into place
· Increased risk of rework, failed inspections, and callbacks
It’s more than an inconvenience—it’s a cost burden.
Gruvmaster's Solution: Precision Through Structural Innovation
Our grooving equipment controls flaring through optimized mechanical design and precise machining, ensuring reliable and consistent groove quality.
▶ Controlled Metal Flow: The high-rigidity grooving head guides material deformation accurately, keeping flare within allowable tolerances and meeting all specification requirements.
▶ Improved Operational Efficiency: With minimal vibration and stable performance, the equipment increases first-pass yield and reduces downtime caused by rework or adjustments—significantly boosting roll grooving productivity.

Choose Gruvmaster—where engineering excellence meets operational efficiency. Finish jobs faster with grooves you can trust.
