CM-12 Electric Hydraulic Pipe Cutting Machine for 2"-12" Steel Pipes
- Model
- CM-12
Item specifics
- Grooving Capacity
- 2-12inch
- Power Supply
- 1100W
- Output Speed
- 23RPM
- Max Wall Thickness:
- 10mm
- Gross Weight
- 125kgs
- Available Material
- Carbon Steel Pipes, Stainless Steel Pipes, PE Pipe
- HS Code
- 8461500090
Review
Description

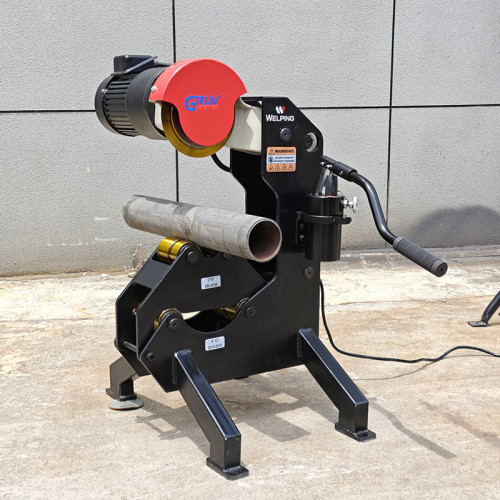

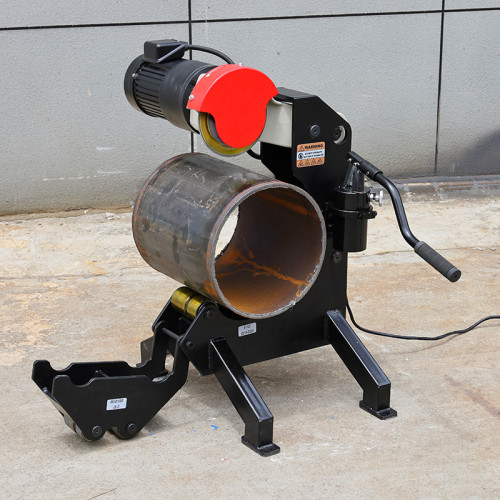

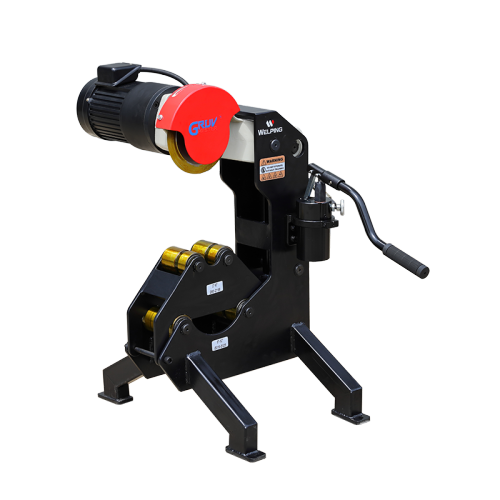

CM-12 Electric Hydraulic Pipe Cutting Machine
Chip-Free Cold Cutting for 2"–12" Steel and Stainless Steel Pipes
Pipe Cutting Machine Parameter
Key Features
• Wide Cutting Range — Cuts 2"–12" (DN50–DN300) steel and stainless steel pipes.
• Chip-Free Cold Cutting — Produces clean cuts without cutting chips or sparks.
• Hydraulic Blade Feed — Provides controlled blade advancement for smooth cutting.
• Low-Noise Drive — A compact gear motor delivers steady power with low operating noise.
• Fully Enclosed Hydraulic Pump — A separate pump-and-cylinder design helps reduce oil changes and extend pump life.
Pipe Cutting Machine Parameter
Model | CM-12 |
Pipe Material | Steel / Stainless Steel |
Pipe Size Range | 2"–12" (DN50–DN300) |
Pipe Outside Diameter | Ø60–325 mm |
Max. Wall Thickness | 10 mm |
Motor Power | 1100W |
Power Supply | 110 V or 220 V, Single Phase |
Frequency | 50/60 Hz |
Output Speed | 23RPM |
Gross Weight | 120 KG |
Packing Dimensions | 67*60*100 cm |
Drive Unit
| Item Number | Phase | Power | Voltage | Frequency |
| 900080 | Single | 1100W | 220V | 50/60HZ |
| 900081 | Single | 1100W | 110V | 50/60HZ |
Standard Parts of CM-12 Pipe Cutter
Item Number | Description | Net Weight | ||||
998041 | Pipe stand for 2"~12" (Φ60~Φ325) | 4.00 KG | ||||
912019 | Cutting Blade (standard) | 1.25 KG | ||||
912058 | Cutting Blade (heavy-duty) | 1.30 KG | ||||
Optional Parts of CM-12 Pipe Cutter
Item Number | Description | Net Weight | ||||
912019 | Stainless steel cutting blade | 1.25 KG | ||||
Pipe Cutting Machine Configuration
Clean, Chip-Free Cold Cutting
Produces clean cuts without metal chips or sparks, reducing worksite cleanup.

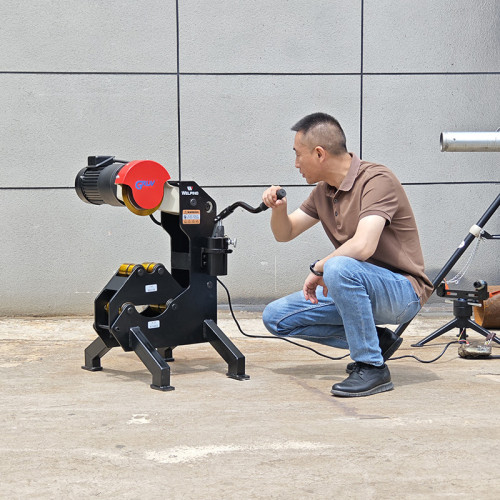

Easy Hydraulic Feed, Low-Noise Operation
Hydraulic blade feed reduces manual effort, while the low-noise gear motor provides a more comfortable working environment.

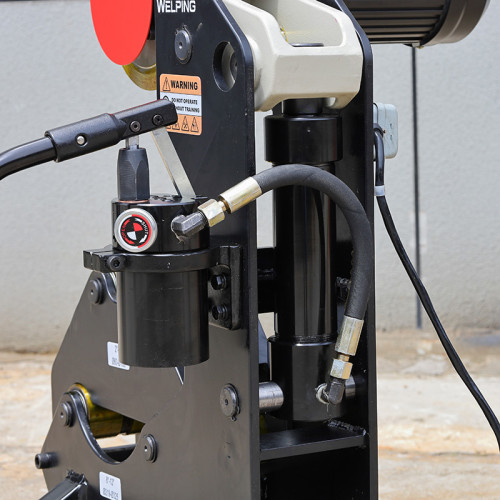

Fully Enclosed Pump, Less Maintenance
The separate pump-and-cylinder design features a fully enclosed hydraulic pump, reducing oil changes and helping extend pump life.
Multiple Pipe Sizes, One Machine
Cuts 2"–12" steel and stainless steel pipes, with roller supports that accommodate different pipe sizes.
Adjustable Stand for Stable Pipe Support
The height-adjustable stand helps align long pipes with the machine. Its tripod base provides stability, while rollers support smooth pipe rotation during cutting.
Upgraded Blade, Consistent Cutting Performance
In our testing, the upgraded blade completed more than 15 consecutive cuts without damage or any decline in cutting efficiency, supporting reliable performance during repeated use.
Resources of CM-12 Pipe Cutter machine

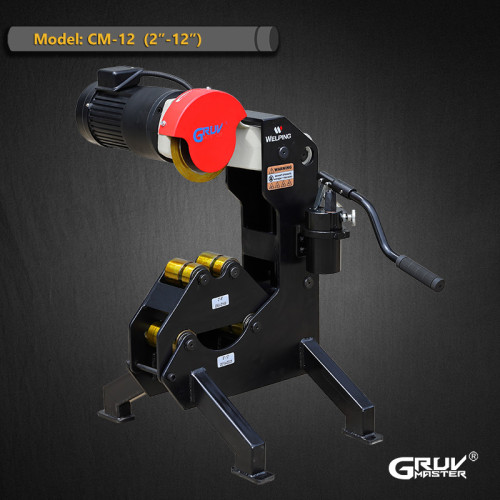

CM-12 Red Version
Pipe Cutting Machine Comparasion
