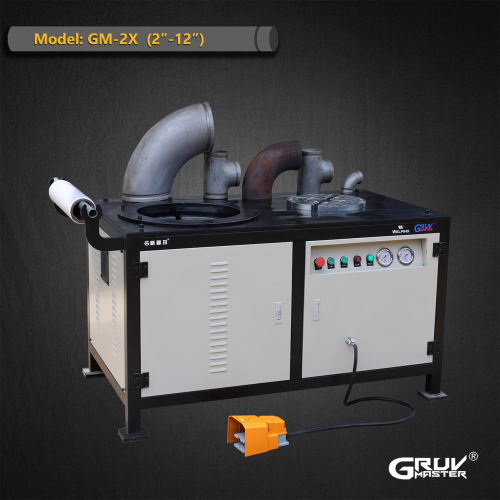

Hydraulic Steel Pipe and Fitting Shaping Machine for 2" to 12"(GM-2X)
Hydraulic Steel Pipe and Fitting Shaping Machine for 2" to 12"(GM-2X)
Hydraulic Steel Pipe and Fitting Shaping Machine for 2" to 12"(GM-2X)
Hydraulic Steel Pipe and Fitting Shaping Machine for 2" to 12"(GM-2X)
Hydraulic Steel Pipe and Fitting Shaping Machine for 2" to 12"(GM-2X)
Hydraulic Steel Pipe and Fitting Shaping Machine for 2" to 12"(GM-2X)

Hydraulic Steel Pipe and Fitting Shaping Machine for 2" to 12"(GM-2X)

Model
GM-2X

Item specifics

Fabrication Capacity
2"-12"(DN25-DN200)SCH10/40 Steel Pipe
Max Wall Thickness
10mm
Output Speed
23RPM
Power Supply
2200W
Voltage
380V,50HZ, Three Phase

Review

Description

Pipe Fitting Reshaping Machine
Features of Electric Hydraulic Pipe Fitting Reshaping Machine
● The pipe fitting reshaping machine, also known as a pipe straightening or alignment machine, is a specialized device used to correct deformities in pipes or pipe fittings. It ensures that pipes meet the required shape, alignment, and dimensional standards for installation and use.

Functions of the Pipe Reshaping Machine:
●  Correcting Deformities: Repairs bent, distorted, or oval-shaped pipes, restoring them to their original round or specified shape.
●  Improving Dimensional Accuracy: Ensures that pipes and fittings meet precise dimensional tolerances, essential for secure and leak-proof connections.
● Alignment: Straightens pipes that may have warped during manufacturing, transportation, or handling, ensuring proper alignment for installation.
● Versatility: Can handle various pipe materials such as steel, stainless steel, making it suitable for different industries.
● Enhanced Performance: Improves the quality and reliability of pipes, reducing the likelihood of failure or leaks in piping systems.
● This machine is commonly used in manufacturing, plumbing, construction, and industrial applications where precision and quality in pipe shapes are critical.
Pipe Fitting Reshaping Machine Parameter
8inch roll groover
Model:
GM-2X
Suitable materials:
Carbon Steel,SS Pipe
Fabrication Capacity:
2"-12" Pipe SCH10/SCH40
Power supply:
380V
Frequency:
50HZ
Max wall thickness:
10mm
Motor power:
2200W
Output pressure:
20ton
Packing gross weight:
760kgs
Packing size:
170*94*120cm
Standard Parts of GM-2X Pipe Fitting Reshaping Machine
Item Number
Description
Net weight
998131
Reforming Dies φ60.3mm
0.25kg
998132
Reforming Dies φ70mm
0.35kg
998133
Reforming Dies φ88.9mm
0.50kg
998134
Reforming Dies φ114.3mm
0.60kg
998135
Reforming Dies φ141.3mm
0.70kg
998136
Reforming Dies φ168.3mm
0.80kg
998137
Reforming Dies φ216.3mm
1.00kg
998138
Reforming Dies φ219.1mm
1.20kg
998139
Reforming Dies φ267.4mm
1.50kg
998140
Reforming Dies φ273mm
1.60kg
998141
Reforming Dies φ318.5mm
1.80kg
998142
Reforming Dies φ329.3mm
2.00kg
998026
Foot Switch
1.50kg
Resources of GM-2X Pipe Fitting Reshaping Machine
Gruvmaster Pipe Fitting Grooving Machine Catalog
Pipe Fitting Reshaping Machine Configuration
8inch roll groover
For 2-12inch
suitable for grooving processing of 2" ~ 12" elbows, equal tees, reducing tees, concentric and eccentric reducers etc. for grooved coupling installation
8inch roll groover
Unique hydraulic station
Unique hydraulic station and electrical operating system, ensure high-quality grooving capability and efficient work performance.
8inch roll groover
Grooved Fittings
The grooving machine processes pipes to enable seamless connections with fittings like elbows, tees, and reducers.
roll groover machine

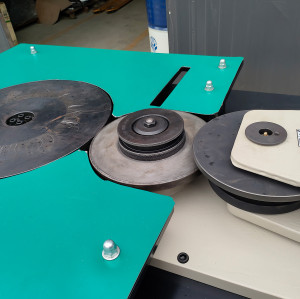

Reforming Dies
Reforming dies from 2inch to 12inch are available, and 1inch are for option
