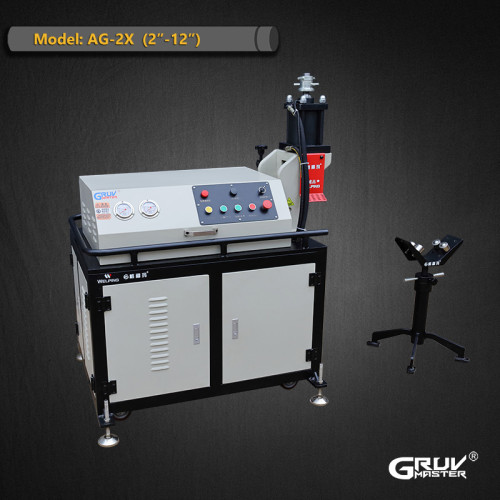

Semi-Automatically Pipe Hydraulic Roll Groover 2"-12" (AG-2X)
- Model
- AG-2X
Item specifics
- Fabrication Capacity
- 2"-12" SCH10/40
- Max Wall Thickness
- 10mm
- Output Speed
- 23RPM
- Power Supply
- 750W
- Packing Size
- 125*100*150cm
- Gross Weight
- 820KG
- Voltage
- 380V
Review
Description

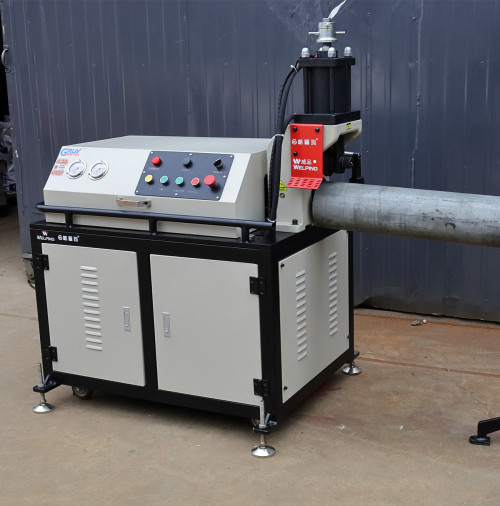

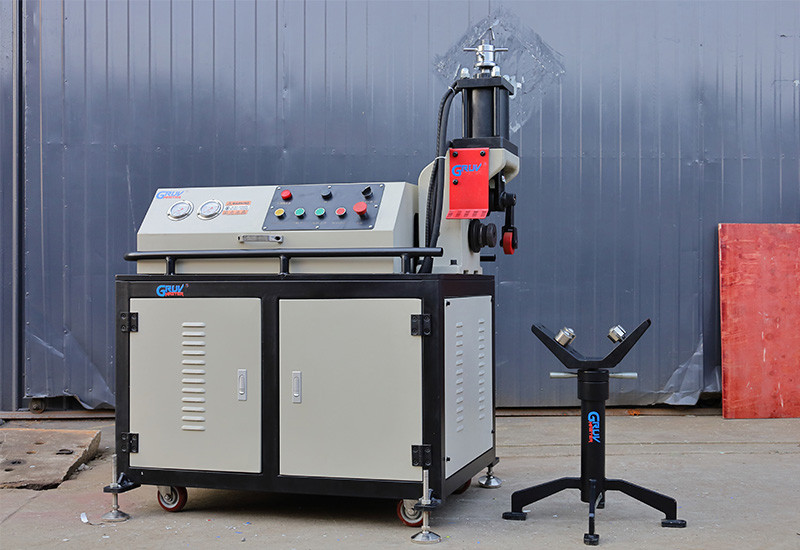

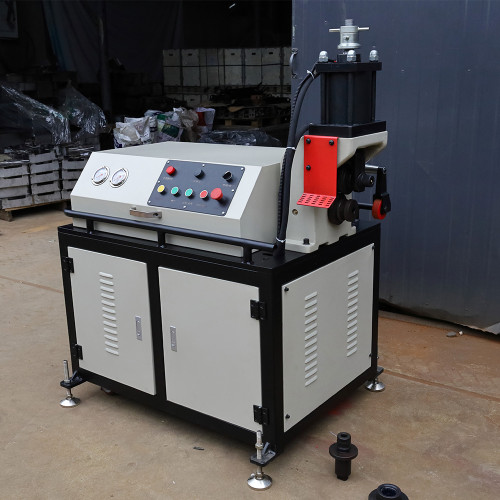

AG-2X Heavy-Duty Automatic Roll Grooving Machine
For 2″–12″ Steel Pipes | Optional Capacity up to 16″
Features of Semi-Automatical Roll Groover Machine 2-12inch
● Built for heavy-duty grooving jobs, model AG-2X is ideal for high-volume grooving of large-diameter steel pipes in workshop and construction sites.
● Equipped with a high-power motor and high-strength gearbox, the machine is built for long-term, continuous operation.
● Heavy-duty groove rollers and drive rollers with interlocking structure ensures precise control of the pipe sealing surface length.
● Unique depth limiting device, the groove roller automatically resets after the groove depth is reached.
Note: the guide wheel can be optionally set to automatically
move back and forth for added convenience and speed
Pipe Roll Grooving Machine Parameter
Model: | AG-2X |
Suitable Materials: | Carbon Steel,SS Pipe |
Fabrication Capacity: | 2"-12" Pipe SCH10/SCH40 |
Optional: | 2"~16"(DN50~DN400,Φ60~Φ426) |
Max Wall Thickness: | 10mm |
Voltage: | 380V |
Frequency: | 50/60HZ |
Dual Motors: | 1100W+750W |
Phase | 3Ph |
Output Speed: | 23 R.P.M |
Packing Gross Weight: | 820kgs |
Packing Size: | 125*100*150cm |

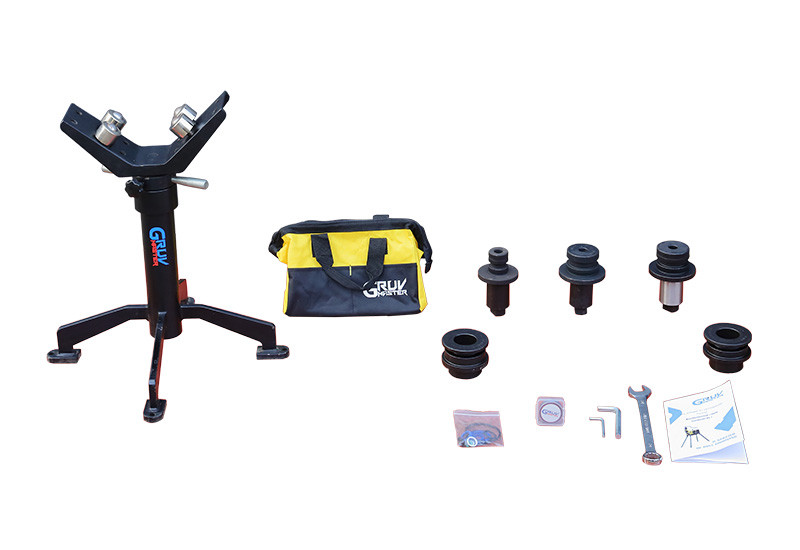

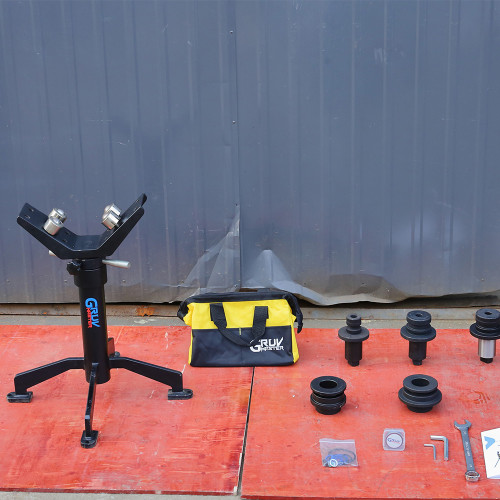

Standard Parts of AG-2X Roll Groover
Item Number | Description | Net weight | ||||
911122 | Drive roller 2"-3" (φ60-φ89) | 1.30 KG | ||||
911021 | Drive roller 3 1/2"-6" (φ101-φ168) | 1.30 KG | ||||
911020 | Drive roller 8"-12" (φ219-φ325) | 1.70 KG | ||||
912010 | Groove roller 2"-3" (φ60-φ89) | 0.90 KG | ||||
912009 | Groove roller 3 1/2"-6" (φ101-φ168) | 0.80 KG | ||||
912008 | Groove roller 8"-12" (φ219-φ325) | 0.70 KG | ||||
998164 | Pipe stand | 12.0 KG | ||||
Optional Parts of AG-2X Roll Groover
Item Number | Description | Net weight | ||||
911170 | Drive roller 14"-16" (φ355-φ426) | 1.70 KG | ||||
912052 | Groove roller 14"-16" (φ355-φ426) | 1.70 KG | ||||
Resources of AG-2X Roll Grooving Machine

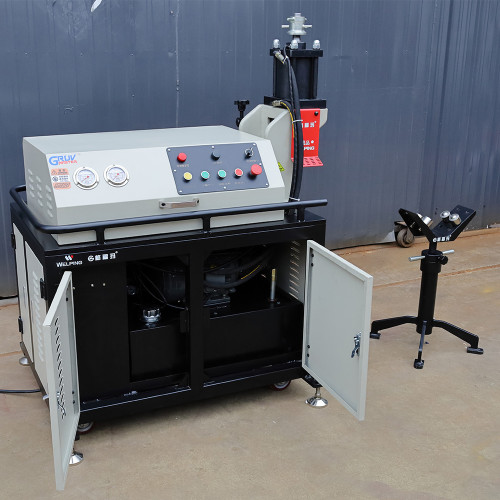

Roll Grooving Machine Configuration
Groove Formation
Accurately processes grooves on steel pipes to ensure secure connections with coupling systems.
Compatibility
Handles various pipe diameters and wall thicknesses, making it suitable for diverse project requirements.
Support color customization
Balanced structure withstands tough jobs
Semi-Automatic Operation
Combines manual control with automated processes to achieve precision and consistency while offering operational flexibility.
Adjustable Settings
Equipped with adjustable roller sets to accommodate different pipe specifications.
User friendly
Simple push-button operations ensures easy and efficient grooving operation experience.
Semi-Automatically
The fully-motorized, semi-automatic, electrohydraulic tool comes complete with safety guards

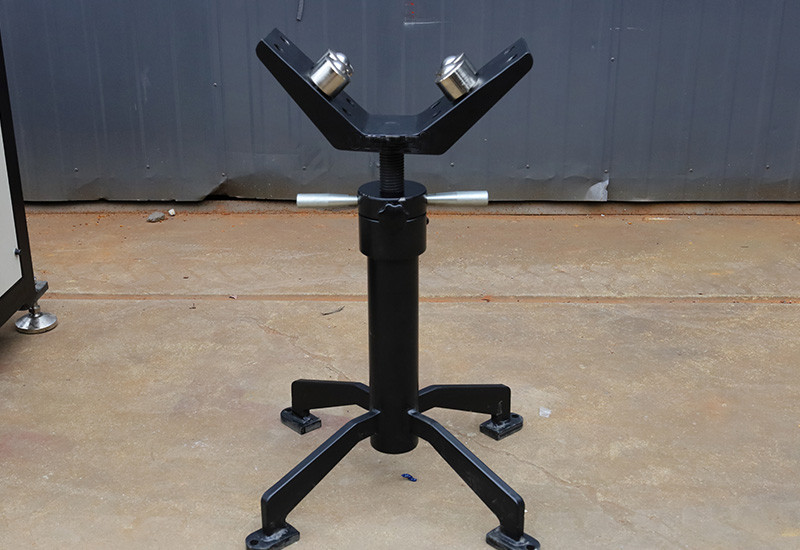

Pipe Stand
Pipe stand for 2-12inch pipes
Groove ruler
The ideal tool for quick and reliable groove inspection,supports brand customization
Pipe Roll Grooving Machine Comparasion
