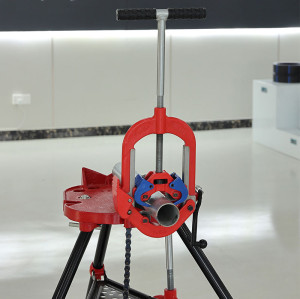

Electric Hydraulic Pipe Cutting Machine for Steel Pipe 2"-8" (CM-8)
Electric Hydraulic Pipe Cutting Machine for Steel Pipe 2"-8" (CM-8)
Electric Hydraulic Pipe Cutting Machine for Steel Pipe 2"-8" (CM-8)
Electric Hydraulic Pipe Cutting Machine for Steel Pipe 2"-8" (CM-8)
Electric Hydraulic Pipe Cutting Machine for Steel Pipe 2"-8" (CM-8)
Model
CM-8

Item specifics

Grooving Capacity
1/2-8inch
Power Supply
700W
Output Speed
30RPM
Max Wall Thickness:
8mm

Review

Description

Steel Pipe Roll Cutting Machine Vedio
Features of Electric Hydraulic Pipe Cutting Machine
● Model CM-8 Electric Hydraulic Pipe Cutting Machine is designed to cut steel pipes and stainless steel from 2"-8" (DN50~DN200) .
● It can cut a wide range of pipes, including steel pipes, stainless steel pipes, PE pipes, making it suitable for diverse industrial applications.
● Electric hydraulic systems provide high accuracy in cutting, ensuring clean and precise cuts every time. This is crucial for industries where accuracy is paramount.
● Constructed with high-quality materials and components, electric hydraulic pipe cutting machines are robust and durable, capable of withstanding heavy-duty usage in industrial environments.
● The electric pipe cutting machine operates through a cold cutting process, ensuring that no sparks are generated during the cutting of steel pipes. This characteristic is particularly advantageous in environments where the presence of sparks could pose safety hazards, such as in oil and gas facilities or areas with flammable materials.
 ● Cold cutting not only eliminates the risk of fire but also helps maintain the integrity of the material being cut by avoiding heat-affected zones and preserving the structural properties of the steel. As a result, electric pipe cutting machines provide a safe and efficient solution for industries requiring precise and spark-free cutting of steel pipes.
Pipe Cutting Machine Parameter
steel pipe roll cutting machine
Mode
CM-8
Suitable materials
Carbon Steel,SS
Fabrication Capacity
2''~8''(DN50~DN200)
Power supple
220V/110V
Frequency
50HZ/60HZ
Max wall thickness
8mm
Motor power
700W
Output speed
30RPM
Packing gross weight
80kgs
Packing size
67*47*75cm
Standard Pards of Pipe Cutter
Item Number
Description
Net weight
998030
Pipe stand for 2''-8''(¢60~¢219)
4kg
912019
Cutting blade
1.25kg
Ordering Information
Catalog Number
Phase
Power
900070
Single
700W,220V,50/60HZ
900071
Single
700W,110V,50/60HZ
Resources
CM-8 Breakdown Part List
CM-8 Operating and Instruction Manual
Details
Wide Application
It can cut a wide range of pipes, including steel pipes, stainless steel pipes, PE pipes, making it suitable for diverse industrial applications.
Casting part
· Reinforced cast iron housing for  hydraulicpump, roller sets, pipe stabilizer
· Support color customization
· Balanced structure withstands tough jobs
cm-8 Hydraulic Pump
Hydraulic Pump
· High quality seal parts ensure long-termfield usage without leaking
· Fine-machined cylinder with accurate sizes
· Proper-hardened piston rod of long-life
· Built-in groove depth adjusting rod
cm-8Blade Part
Blade Part
· Made of high-strength materials
· Support accessory ordering
· Long lifespan and easy replacement
Roller part
· Supports placing 2-8-inch fittings
· High-strength,solid and deformation-resistan
· Smooth rolling without lagging
Pipe stand
· Supports placing 2-8-inch fittings.
· The height can be adjusted to fit differentpipes by adjusting the bottom screws
Pipe Cutting Machine Comparison
