Hinged Pipe Cutter 2"-8" (VH-4S, 6S, 8S)
- Model
- VH-4S, 6S, 8S
Item specifics
- Cutting Capacity
- 2-4inch, 4-6inch, 6-8inch
- Application
- Sch40 steel and stainless
- Driving method
- manual
Review
Description

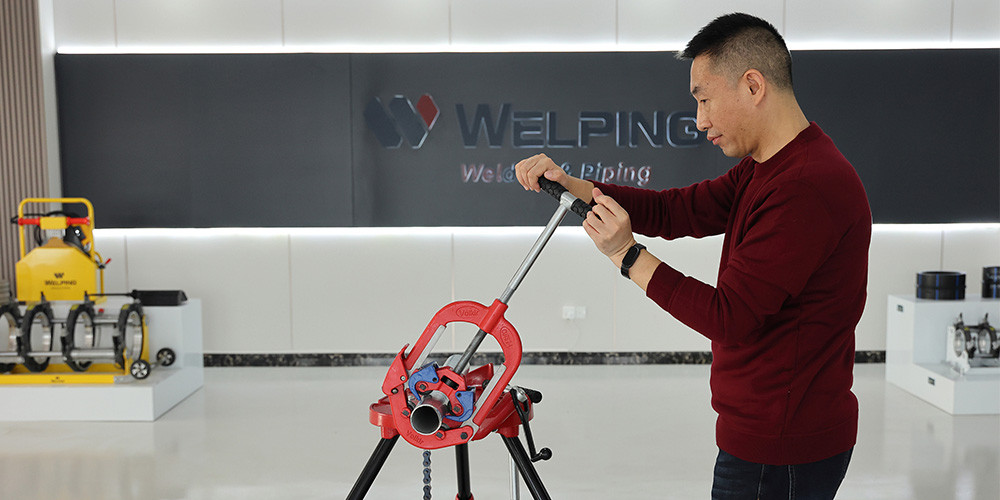

Hinged Pipe Cutter Video
Features of Hinged Pipe Cutter
● The hinged Pipe Cutter, innovative design, with an efficient handle swing of only 90° to 110°, requires just 4 inches (102 mm) of clearance around the pipe. It provides smooth operation in tight spaces.

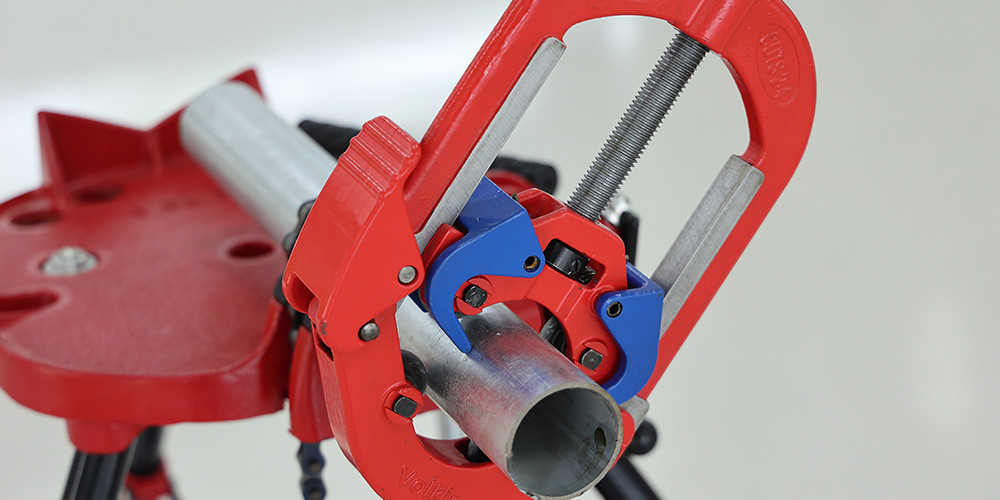

● The hinge design allows the 4-wheel cutter to open and easily position around the pipe.
● Versatile and reliable, it works effectively anywhere—whether in ditches, underwater, overhead, or in pipe racks.
● No spark. Suitable for pipeline emergency repair work, especially suitable for oil pipeline and gas pipeline repair work.
● Optional: VH6S and VH8S can come with a torque extension bar(optional), enabling two-person operation.
Hinged Pipe Cutter Parameter

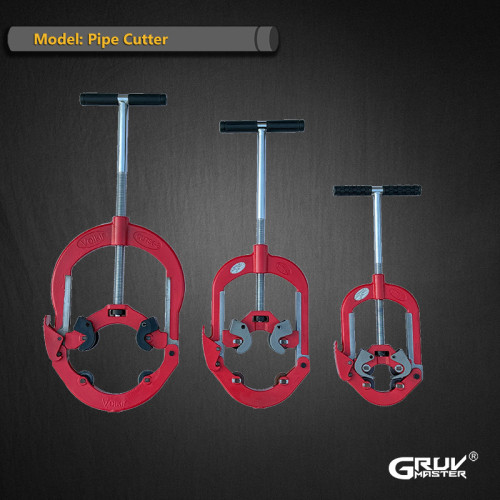

Model | VH-4S |
VH-6S | VH-8S | |
|
Catalog No.
|
810020 | 810030 | 810040 |
|
|
Pipe capacity
|
2"-4" | 4"-6" | 6"-8" |
|
60-125mm | 114-182mm | 168-240mm |
||
|
Cutter wheel
|
S4 | S6 | S8 |
|
Application | Sch40 steel and stainless | |||
Length | 22" | 28" | 32" | |
Length | 559mm | 711mm | 813mm | |
Packing gross weight | 7 | 11 | 15 | |
Packing size | 59*25*10 | 78*32*11 | 88*42*11 | |
Ordering Information
Catalog Number | Model | Net Weight | |||
810020 | VH-4S | 6.5kgs | |||
810030 | VH-6S | 10.3kgs | |||
810040 | VH-8S | 14.1kgs | |||
Resources
Details

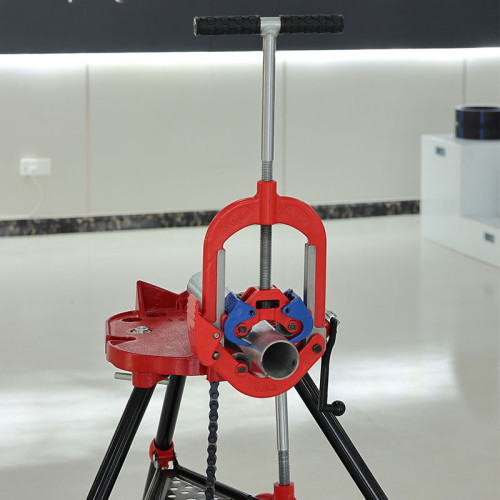

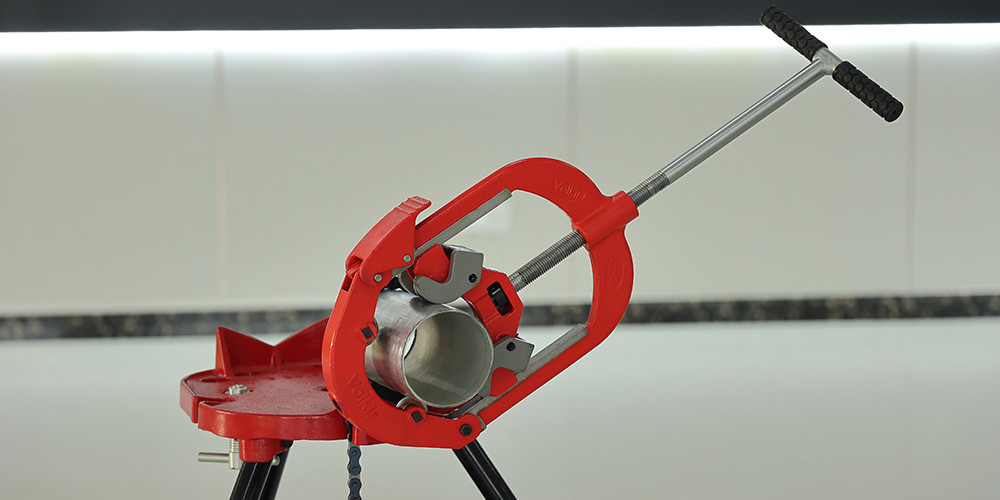

Tight Quarters
The cutters operate with minimal cutter rotation (90-110 degrees)

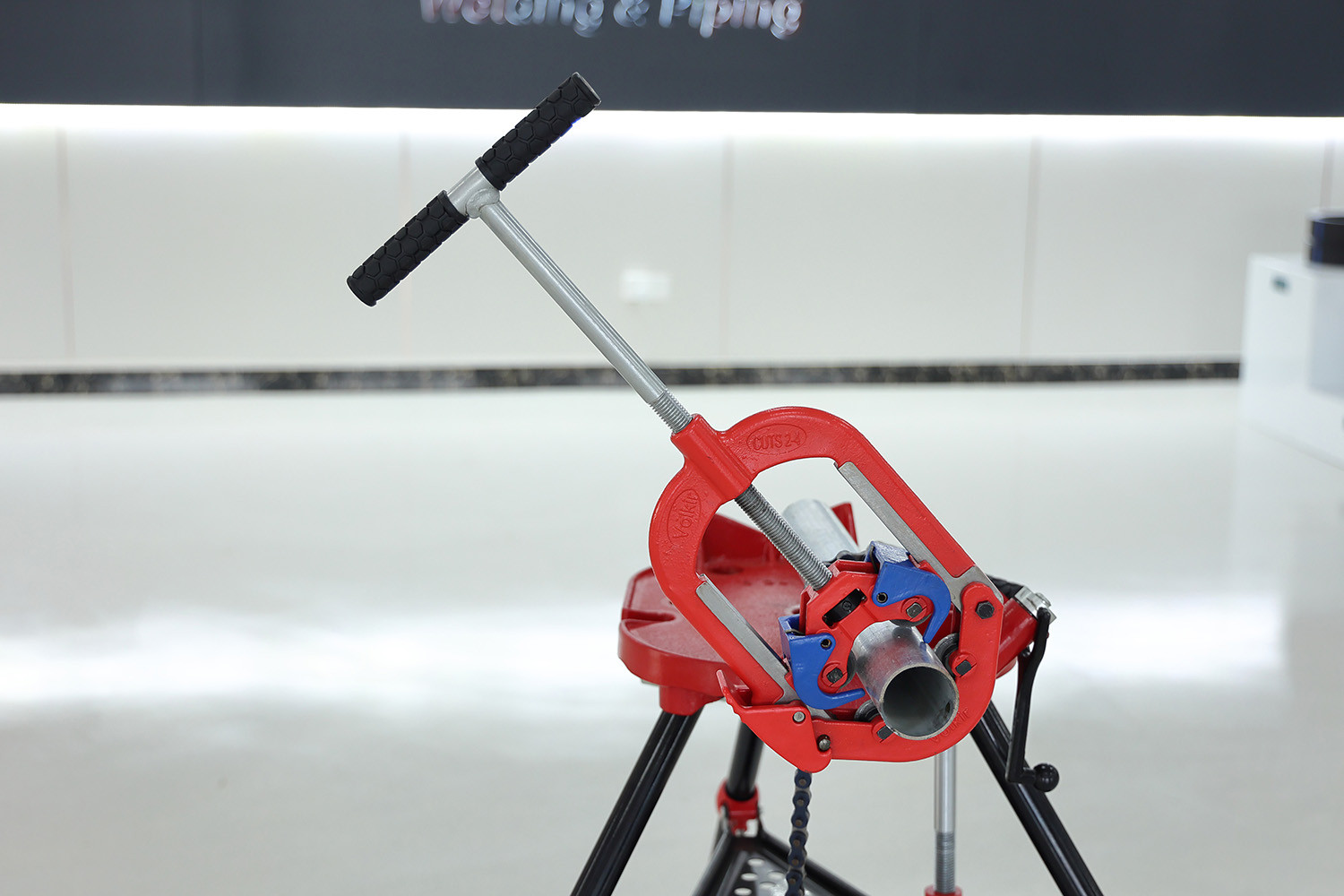

Safe Work
· The hinge design allows the 4-wheel cutter to open and easily position around the pipe.
· No spark, Suitable for pipeline emergency repair work

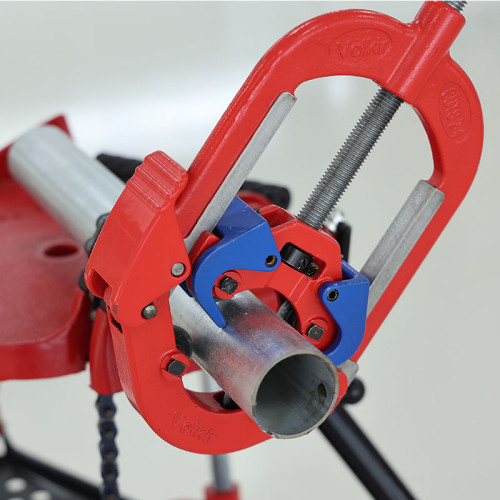

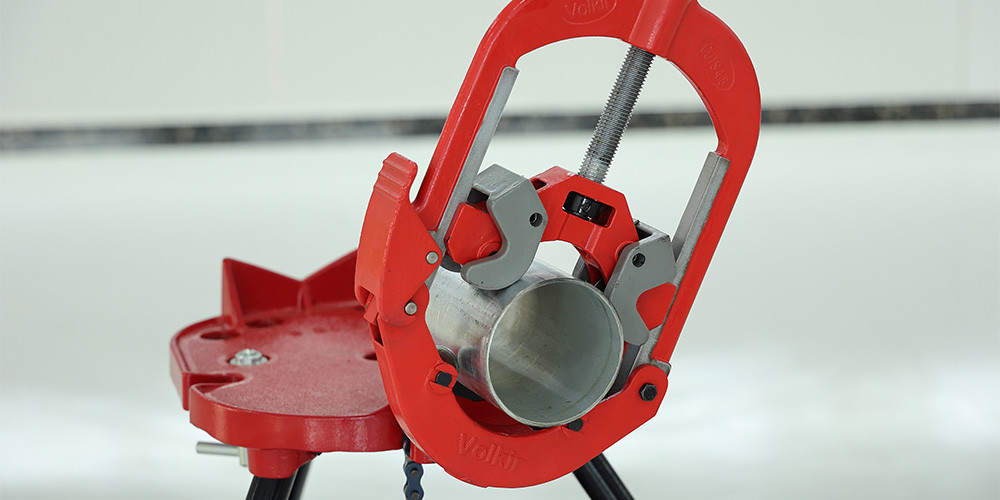

Improved New Jaw
(Applied on VH6S VH8S)
· The new Jaw is smoother working, more labor-saving.
· It can wrap the blade at all times. No matter the pipe and blade sizes.
Wide Application
· Versatile and reliable, it works effectively anywhere—whether in ditches, underwater, overhead, or in pipe racks.

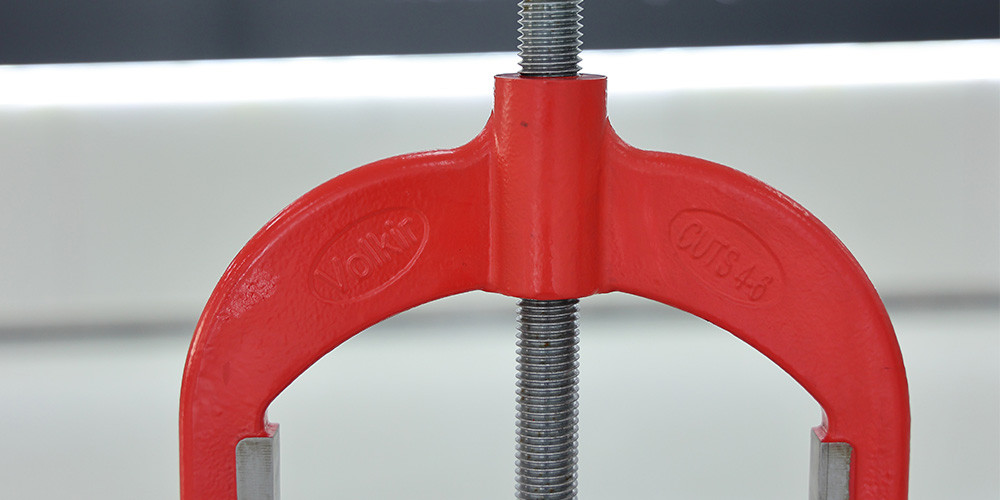

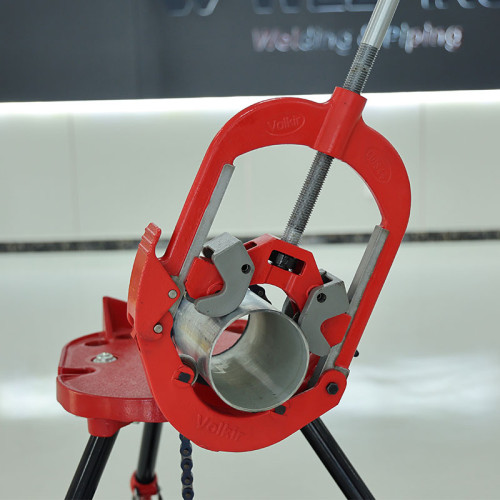

Enlarged Upper Holder
(Applied on VH8S)
· Strengthen Upper Holder. it is less likely to deform when cutting.

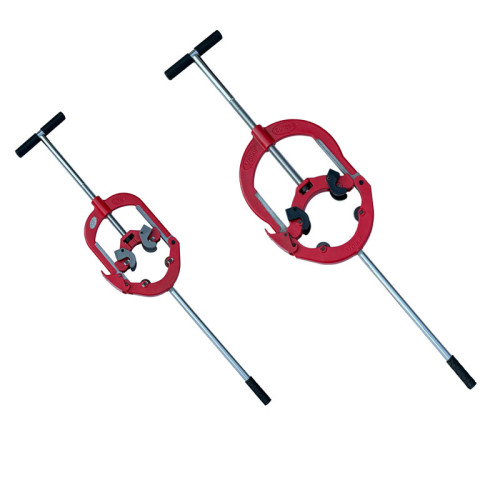

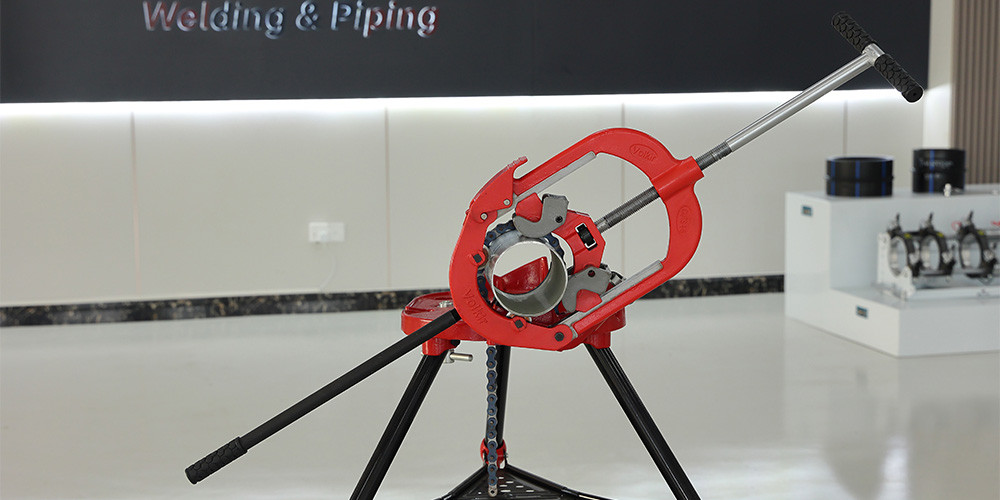

Handle (Optional, Applied on VH6S VH8S)
· with a handle at the bottom. two people can operate the cutter at the same time for greater efficiency.
