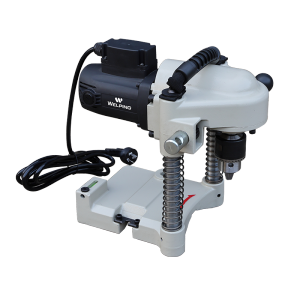

HC-2X 4 Inch Steel Pipe Hole Cutting Machine Tube Driller
HC-2X 4 Inch Steel Pipe Hole Cutting Machine Tube Driller
Model
HC-2X

Item specifics

Cutting Capacity
Up To 4" (114mm)
Pipe Mounting Capacity
1 1/4"-8"(32mm-200 mm)
Drill Chuck Capacity
1/16"-5/8"(2mm-16 mm)
Drill Chuck Speed
110RPM
Current Draw Rating
8 Amps @ 220-240V
Current Draw Rating
15 Amps @ 120V
Gross Weight
21kgs
Available Material
Carbon Steel Pipes, PE Pipes

Review

Description

Pipe Hole Cutting Machine Features
Features of Pipe Hole cutter
●The Model HC-2X Pipe Hole Cutter is designed to cut holes up to 4" into steel pipe.
●The HC-2X has a 5/8" capacity drill chuck to accommodate all sizes of hole saws and hole saw arbors..
●Equipped with a high-performance, low-noise gear reduction motor to offer high torque.
●The two feed handles allow the operator to use the Pipe Hole Cutter from either the left or right side. A rotating leveling vial in the base allows repeated holes to line up.
Pipe Roll Grooving Machine Parameter
8inch roll groover
Model:
HC-2X
Suitable Material:
Carbon Steel Pipes, PE Pipes
Cutting Capacity:
up to 4"(114mm)
Pipe Mounting Capacity:
1 1/4"- 8"(32mm-200 mm)
Drill Chuck Capacity:
1/16"- 5/8"(2mm-16 mm)
Drill Chuck Speed:
110RPM
Current Draw Rating:
8 Amps @ 220-240V

15 Amps @ 120V
Packing gross weight:
21kgs
Packing size:
32*32*63cm
Ordering Information
Catalog No.
Phase
Power
910020
Single
700W,220V,50/60HZ
910021
Single
700W,110V,50/60HZ
Pipe Hole Cutting Machine Configuration
8inch roll groover
High Efficiency
The pipe hole cutting machine can quickly complete the operation, significantly improve the working efficiency and save time.
8inch roll groover
Wide range of applications
It can be stuitable to many materials, such as steel pipe, aluminum pipe, PVC pipe, etc., with strong adaptability.
roll groover machine
Easy to move and use
This hole cutter is portable, making it easy to use at different job sites.
It is an Indispensable tool for pipeline construction and maintenance
roll groover machine
High precision
The machine comes with a leveling device and advanced positioning and cutting technology, which ensures the accuracy of the position and size of the opened holes and reduces material waste.
Resources of RG-1C Roll Grooving Machine

HC-1X Pipe Hole Cutting Machine Operating and MaintenanceInstructions Manual
