Model
RG-3M

Item specifics

Fabrication Capacity
1 1/4"-6"(DN25-DN150) Steel Pipe
Max Wall Thickness
6mm
Operation radius
210mm / 8 ¼"
Packing Size
50*22*53cm
Gross Weight
12KG

Review

Description

Pipe Roll Grooving Machine Video
Features of Manual Roll Groover Machine

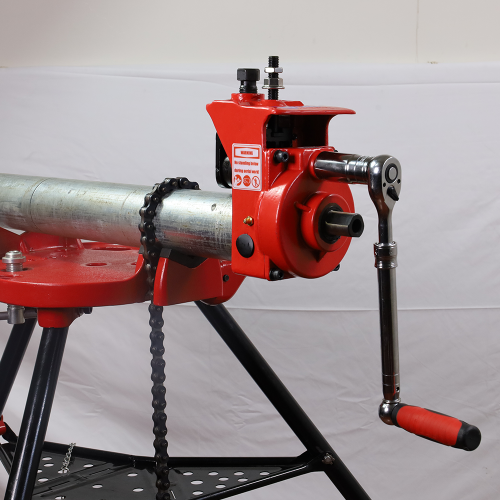

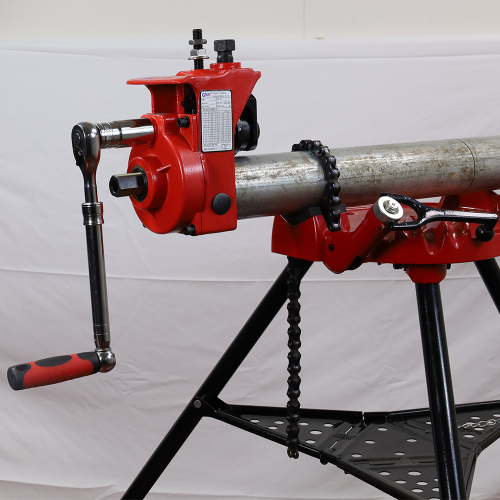

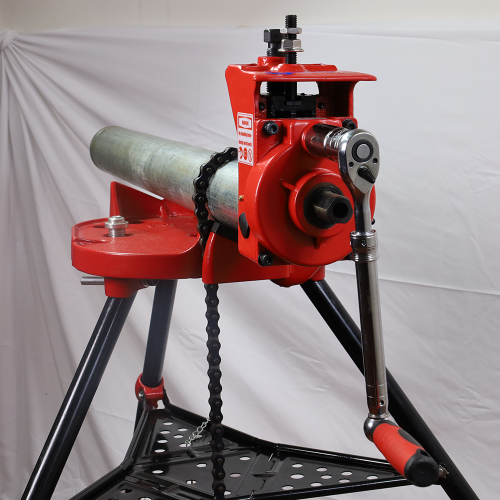

● Can be used manually or with a power drive. Ideal for on-site or flexible grooving tasks
● Featuring a compact design, the RG-3M is a versatile roll grooving tool that supports both manual operation and power drive through a threading machine. Suitable for both batch production and flexible on-site operations.
● Light-duty design for fire-fighting pipelines size range 1 1/4"~6"(DN32~DN150),SCH10 to SCH40.
●Compact design with a portable toolbox, allowing easy manual operation even in confined spaces
● Two-stage gear reduction for smooth, labor-saving operation
● Quick and easy swap shafts in 30 seconds.
Pipe Roll Grooving Machine Parameter
8inch roll groover
Model:
RG-3M
Suitable materials:
Carbon Steel,SS Pipe
Fabrication Capacity:
1 1/4"-4"SCH10/405"-6"  SCH10/20
Max wall thickness:
6mm
Operation radius (mm):
210mm
Operation radius (In):
8 ¼"
Packing gross weight:
22kgs
Packing size:
50*22*53cm
Standard Parts of RG-3M Roll Groover
Item Number
Description
Net weight
911010
Drive roller 1 ¼"~6" (Φ42~Φ168)
0.70kg
912016
Groove roller 1"~6" (Φ42~Φ168)
0.30kg
Optional Parts of RG-3M Roll Groover
Item Number
Description
Net weight
911016
Support arms (×2) for 300
1.40kg
911015
Drive bar adaptor
2.50kg
998034
HDPE tool case
2.70kg
998114
Bracket set for horizontal pipe threading machine
1.00kg
Resources of RG-3M Roll Grooving Machine
RG-3M Manual Roll Groover Catalog
Catalog of Steel Pipe Tools
Roll Grooving Machine Configuration
8inch roll groover
Light-weight tool
Light-weight design for fire-fighting and industrial pipelines
High-quality seal parts ensure long-term field usage without leaking
8inch roll groover

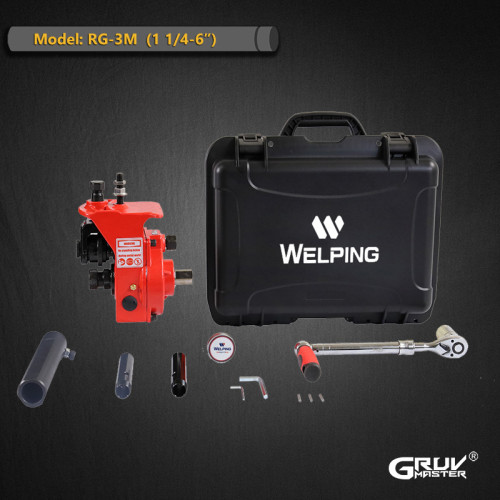

HDPE Tool case (Optional)
Reinforced HDPE Tool case, Easy to carry and move
Waterproof and dustproof to protect tools from damage.
8inch roll groover

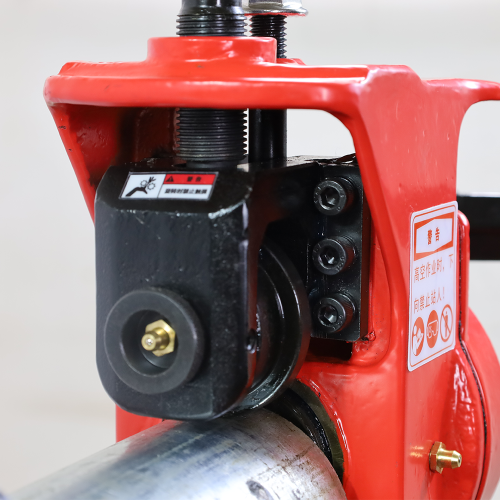

Groove Roller
one set 1 "-6"(φ33~φ168)
roll groover machine
Drive roller
one set 1 1/4"-6"(φ42~φ168)
roll groover machine
Compact design
Compact design with a portable toolbox, allowing easy manual operation even in confined spaces
roll groover machine
Support arms (Optional)
Support arms (×2), work with RIDGID 300 power drive
