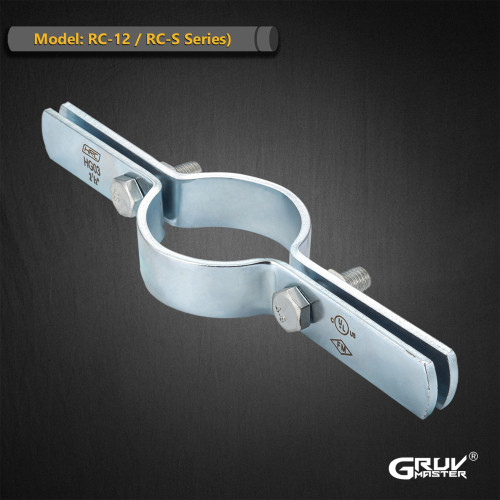

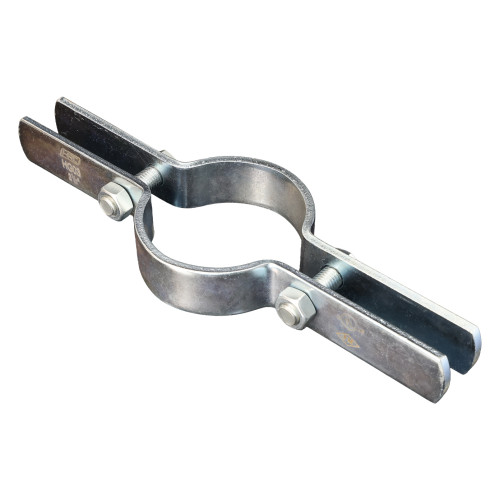

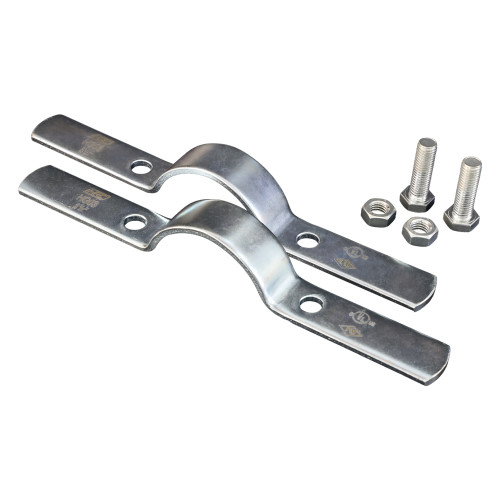

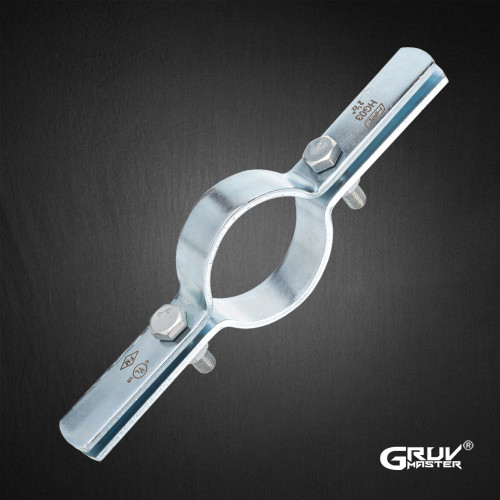

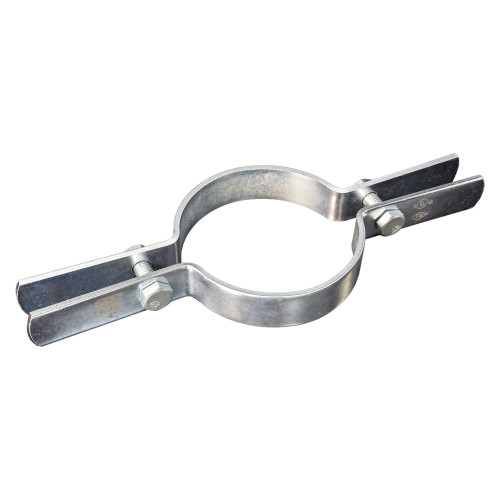

Steel Pipe Riser Clamp 3/4"–12" | Heavy Duty Pipe Support
- Model
- HG03
Item specifics
- Material
- Carbon steel
- Size Range
- 3⁄4" through 12“
- Application
- Steel Pipe Riser Support
- Installation Type
- Bolted Clamp Connection
- Max Temperature
- 650°F
- Finish
- Electro-Galvanized
Review
Description
Riser Clamp for Steel Pipe | Adjustable Pipe Support
（Size Range: 3/4"–12" | UL/FM Certification Available）
Product Overview
Riser clamps are used to support vertical steel pipes and carry the full weight of the piping system.
Designed for fire protection and mechanical piping applications, this clamp helps maintain stable positioning, prevents downward movement, and ensures reliable load transfer to the building structure.
Product Specifications
| Model: | HG03 |
| Product Name: | Riser Clamp |
| Material: | Carbon Steel |
| Finish: | Electro-Galvanized |
| Size Range: | 3/4" – 12" |
Application: | Vertical Steel Pipe Support |
Installation: | Bolted Below Coupling Hub or Welded Lugs |
Lug Configuration: | 2 Lugs (Up to 3") 4 Lugs (Up to 12") |
Max Temperature: | 650°F |
Certification: | UL Listed (Optional) FM Approved (Optional) |
Key Features
Reliable Load Support
Engineered to securely carry vertical pipe loads and maintain stable pipe positioning.
Corrosion-Resistant Finish
Electro-galvanized coating with optional hot-dip galvanizing for enhanced durability.
Wide Size Compatibility
Available from 3/4" to 12", suitable for various pipe sizes and system requirements.
Standards-Compliant Design
Manufactured in accordance with MSS standards, with optional UL/FM certification.
Selection Guide
· Select the clamp size according to the pipe outer diameter
· Verify that the load capacity meets project requirements
· Choose the appropriate lug configuration based on pipe size
· Select surface finish based on indoor or outdoor conditions

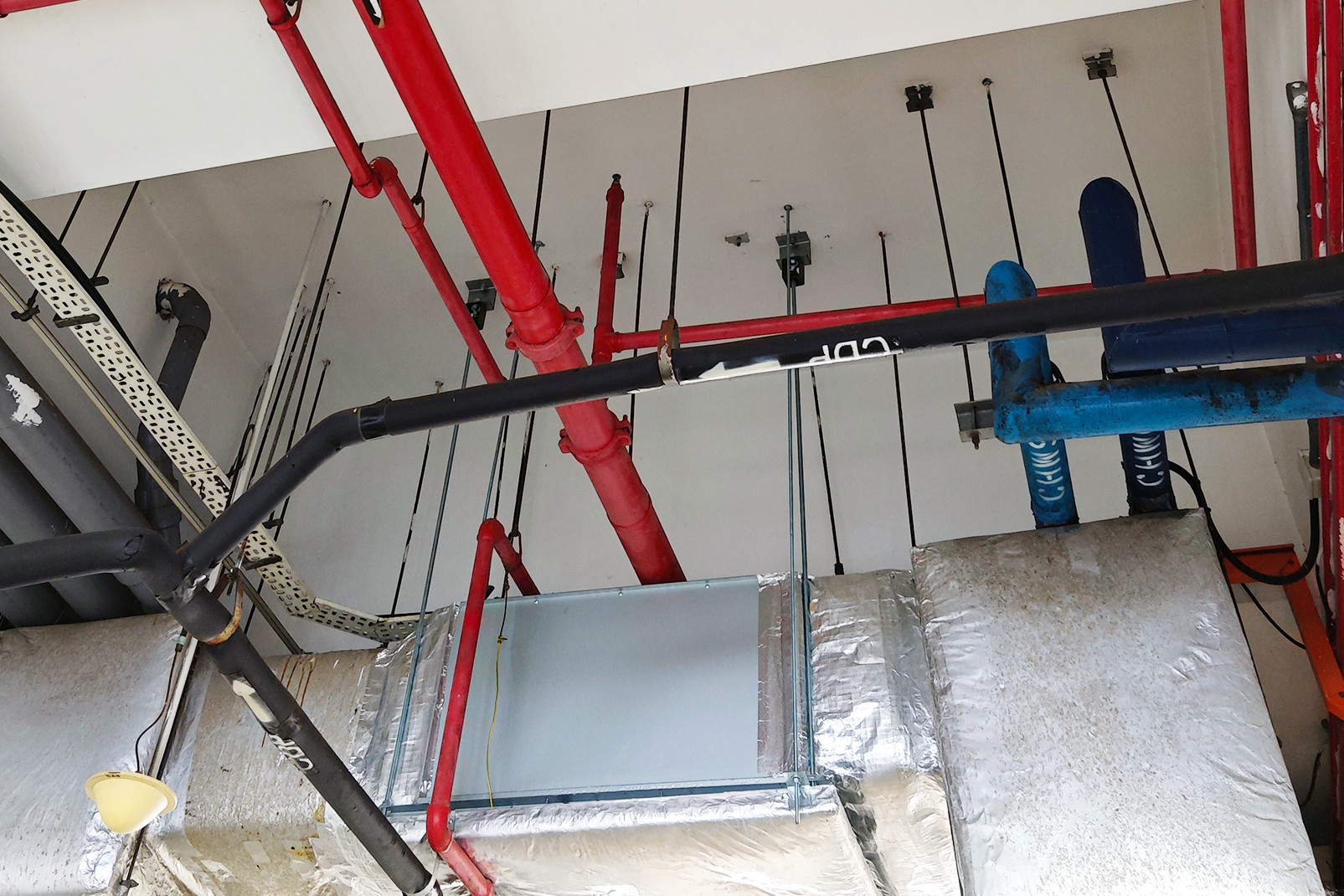

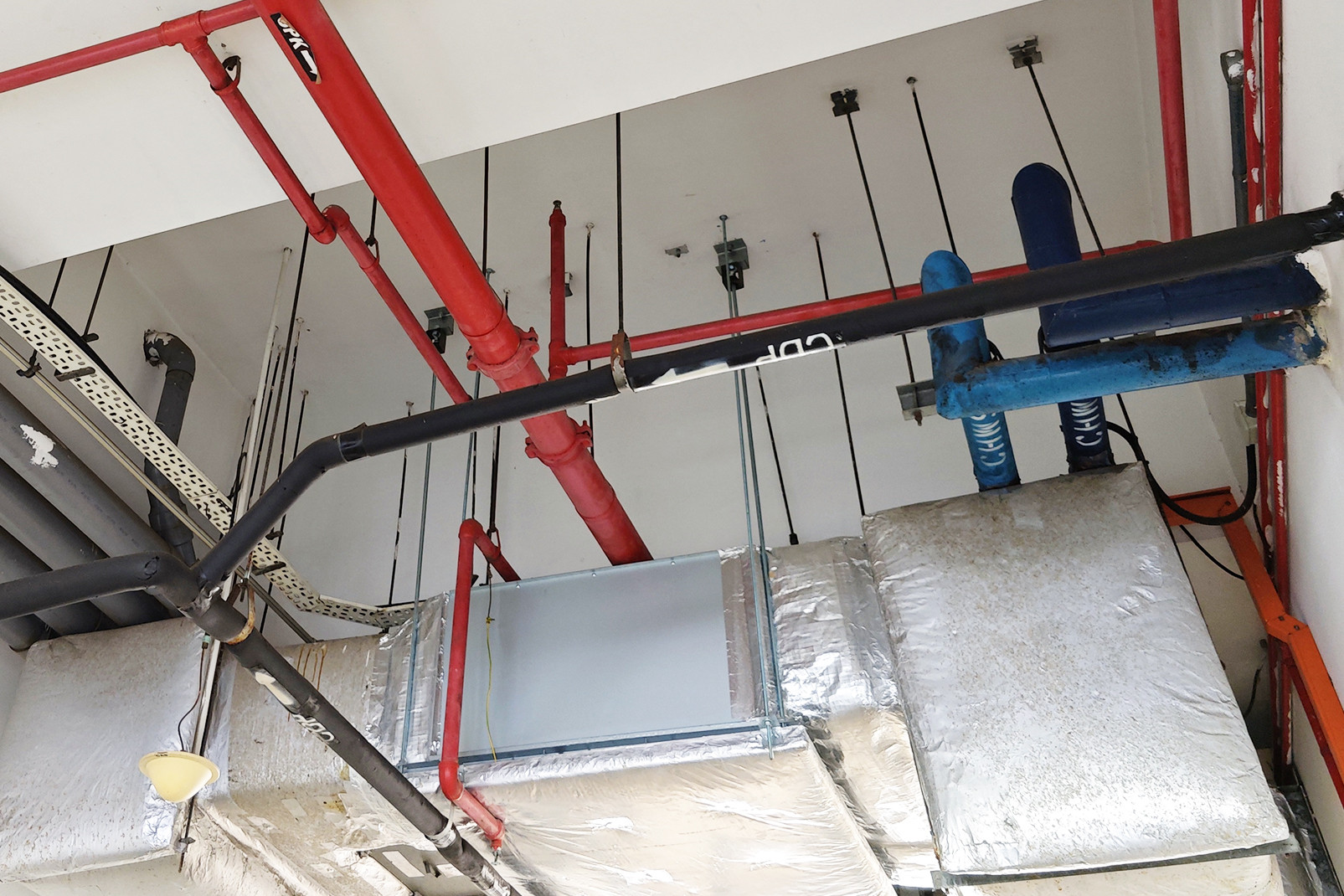

Typical Riser Clamp Installation
Standards & Certification
· MSS SP-69 / SP-58
· A-A-1192A (Type 8)
· UL Listed (Optional)
· FM Approved (Optional)
Technical Data
Dimensions and load capacity vary by pipe size. Refer to the table below for detailed specifications.
FAQ
Q: What is a riser clamp used for?
A: It is used to support vertical steel pipes and help prevent downward movement in piping systems.
Q: Where is the clamp installed?
A: It is typically installed below a pipe coupling, hub, or welded support point.
Q: Can riser clamps support full pipe load?
A: Yes, when properly installed, they are designed to carry the vertical load of the pipe.
Q: What finish is recommended for outdoor use?
A: Hot-dip galvanizing is recommended for improved corrosion resistance in outdoor environments.
Contact us for detailed specifications, pricing, and project support.
