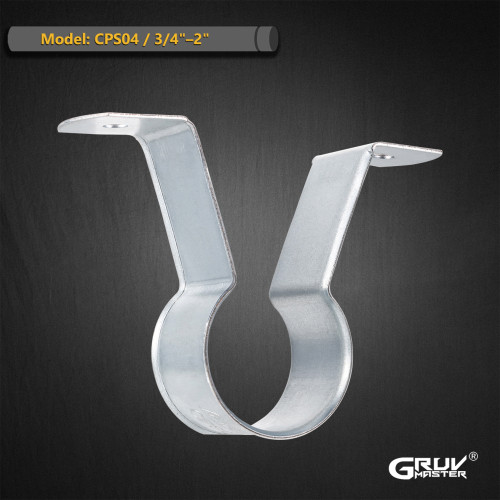

CPS04 Standoff Pipe Strap 3/4"–2" | Offset Pipe Support
- Model
- CPS04
Item specifics
- Material
- Carbon steel
- Size Range
- 3/4" – 2"
- Finish
- Pre-Galvanized (ASTM A653)
- Application
- Horizontal and vertical pipe support
- Installation Type
- Two-Hole Screw Mount
- Structure Type
- Offset / Standoff design
- Function
- Maintains pipe clearance from mounting surface
- Compatible Materials
- CPVC, Steel, Copper Pipe
- Certification
- UL Listed / ULC Listed
Review
Description
Style CPS04 | Two Hole Standoff Pipe Strap
(Size Range: 3/4"–2" | UL / ULC Listed)
Product Overview
The CPS02 Two Hole Pipe Strap is designed for securing CPVC, steel, and copper pipes in both horizontal and vertical installations. Its dual-hole structure provides stable two-point fixing, ensuring improved pipe support and positioning during operation.
Manufactured from pre-galvanized carbon steel, it offers reliable corrosion resistance for indoor applications. The simple and durable design makes it suitable for a wide range of structural mounting conditions, including wood and light steel systems.
Product Specifications
| Model: | CPS04 |
| Product Name: | Standoff Pipe Strap |
| Material: | Carbon Steel |
| Finish: | Pre-Galvanized (ASTM A653) |
| Size Range: | 3/4" – 2" |
Application: | Pipe support with spacing from mounting surface |
Installation: | Two-hole fixed mounting to structure |
Max Temperature: | Suitable for standard piping environments |
Certification: | UL Listed / ULC Listed |
Key Features
Offset Clearance Design
Maintains spacing between pipe and mounting surface.
Stable Two-Hole Fixing
Maintains spacing between pipe and mounting surface.
Pipe Protection
Reduces abrasion and surface contact.
Versatile Installation
Suitable for horizontal and vertical applications.
Selection Guide
· Select size based on pipe outer diameter (O.D.)
· Ensure required clearance from mounting surface
· Suitable for wood and light steel structures
· Choose based on installation orientation
Typical Riser Clamp Installation
Standards & Certification
· UL Listed
· ULC Listed
· Complies with ASTM A653 material standard
Technical Data
Dimensions and load capacity vary by pipe size. Refer to the table below for detailed specifications.
FAQ
Q: What is a standoff pipe strap used for?
A: It is used to support pipes while maintaining clearance from the mounting surface.
Q: What makes this different from standard pipe straps?
A: The offset design provides spacing to reduce pipe contact and abrasion.
Q: Can it be used for vertical installation?
A: Yes, it is suitable for both horizontal and vertical mounting.
Q: Is it suitable for outdoor use?
A: Additional corrosion protection is recommended for outdoor environments.
