CPS02 Two Hole Pipe Strap 3/4"–2" Carbon Steel Dual-Fix Pipe Support
- Model
- CPS02
Item specifics
- Material
- Carbon steel
- Size Range
- 3/4" – 2"
- Finish
- Pre-Galvanized (ASTM A653)
- Application
- CPVC / Steel / Copper Pipe Support
- Installation Type
- Two-Hole Screw Mount
- Mounting Orientation
- Horizontal / Vertical
- Pipe Type
- CPVC / Steel / Copper
- Support Type
- Dual-Point Fixing
- Corrosion Protection
- Pre-Galvanized Coating
- Certification
- UL Listed / ULC Listed
Review
Description

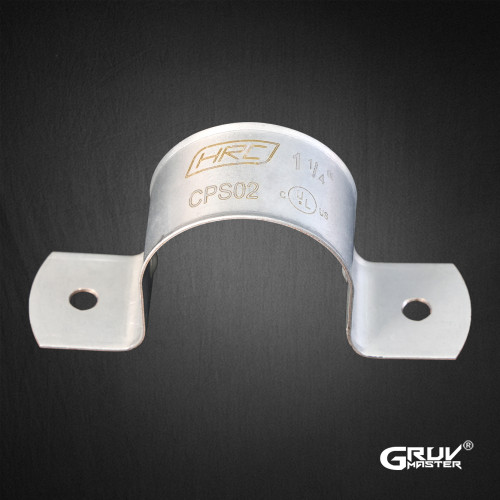

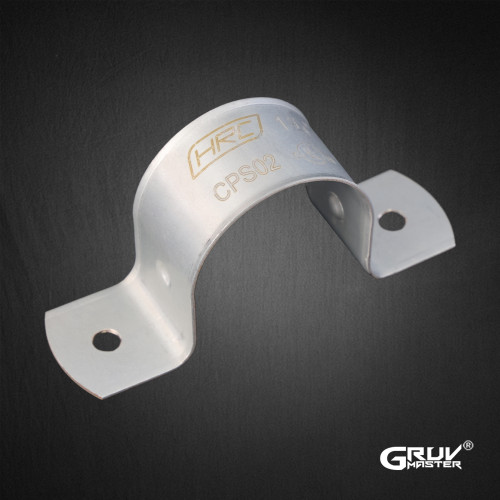

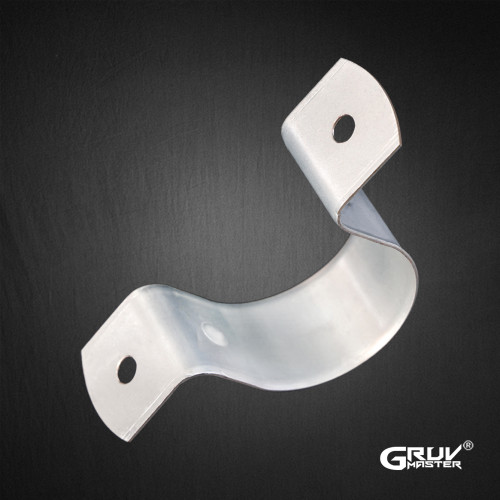

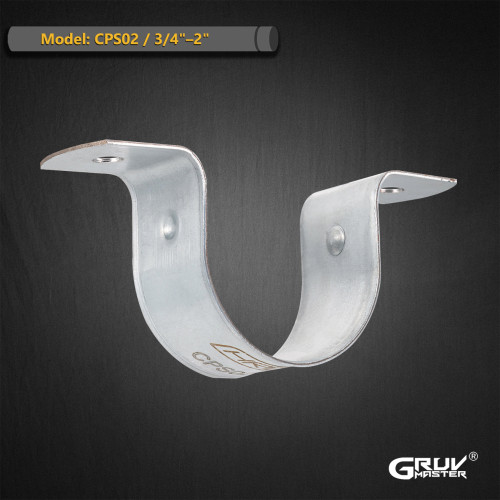

CPS02 Two Hole Pipe Strap
(Size Range: 3/4"–2" | UL / ULC Listed)
Product Overview
The CPS02 Two Hole Pipe Strap is designed for securing CPVC, steel, and copper pipes in both horizontal and vertical installations. Its dual-hole structure provides stable two-point fixing, ensuring improved pipe support and positioning during operation.
Manufactured from pre-galvanized carbon steel, it offers reliable corrosion resistance for indoor applications. The simple and durable design makes it suitable for a wide range of structural mounting conditions, including wood and light steel systems.
Product Specifications
| Model: | CPS02 |
| Product Name: | Two Hole Pipe Strap |
| Material: | Carbon Steel |
| Finish: | Pre-Galvanized (ASTM A653) |
| Size Range: | 3/4" – 2" |
Application: | CPVC / Steel / Copper Pipe Support |
Installation: | Two-Hole Screw Mount |
Mounting Orientation: | Horizontal / Vertical |
Support Type: | Dual-Point Fixing |
Certification: | UL Listed / ULC Listed |
Key Features
Dual-Point Secure Fixing
Two-hole design ensures stable and balanced pipe support, reducing movement during operation.
Pipe Protection Design
Smooth beveled edges help prevent damage to pipe surfaces during installation and use.
Corrosion-Resistant Finish
Pre-galvanized coating provides consistent corrosion resistance for indoor environments.
Flexible Installation
Suitable for both horizontal and vertical mounting, adapting to different installation scenarios.
Selection Guide
· Select strap size based on pipe outer diameter
· Recommended for light to medium-duty pipe support
· Suitable for wood and light steel structures
· Choose based on installation orientation (horizontal or vertical)
Typical Riser Clamp Installation
Standards & Certification
· UL Listed
· ULC Listed
· Complies with ASTM A653 material standard
Technical Data
Dimensions and load capacity vary by pipe size. Refer to the table below for detailed specifications.
FAQ
Q: What is a two hole pipe strap used for?
A: It is used to secure pipes in horizontal or vertical installations with improved stability.
Q: What types of pipes are supported?
A: Suitable for CPVC, steel, and copper pipes.
Q: What is the advantage of two-hole design?
A: It provides more stable and secure fixing compared to single-hole straps.
Q: Is it suitable for outdoor use?
A: Standard version is for indoor use. Additional surface treatment is recommended for outdoor applications.
