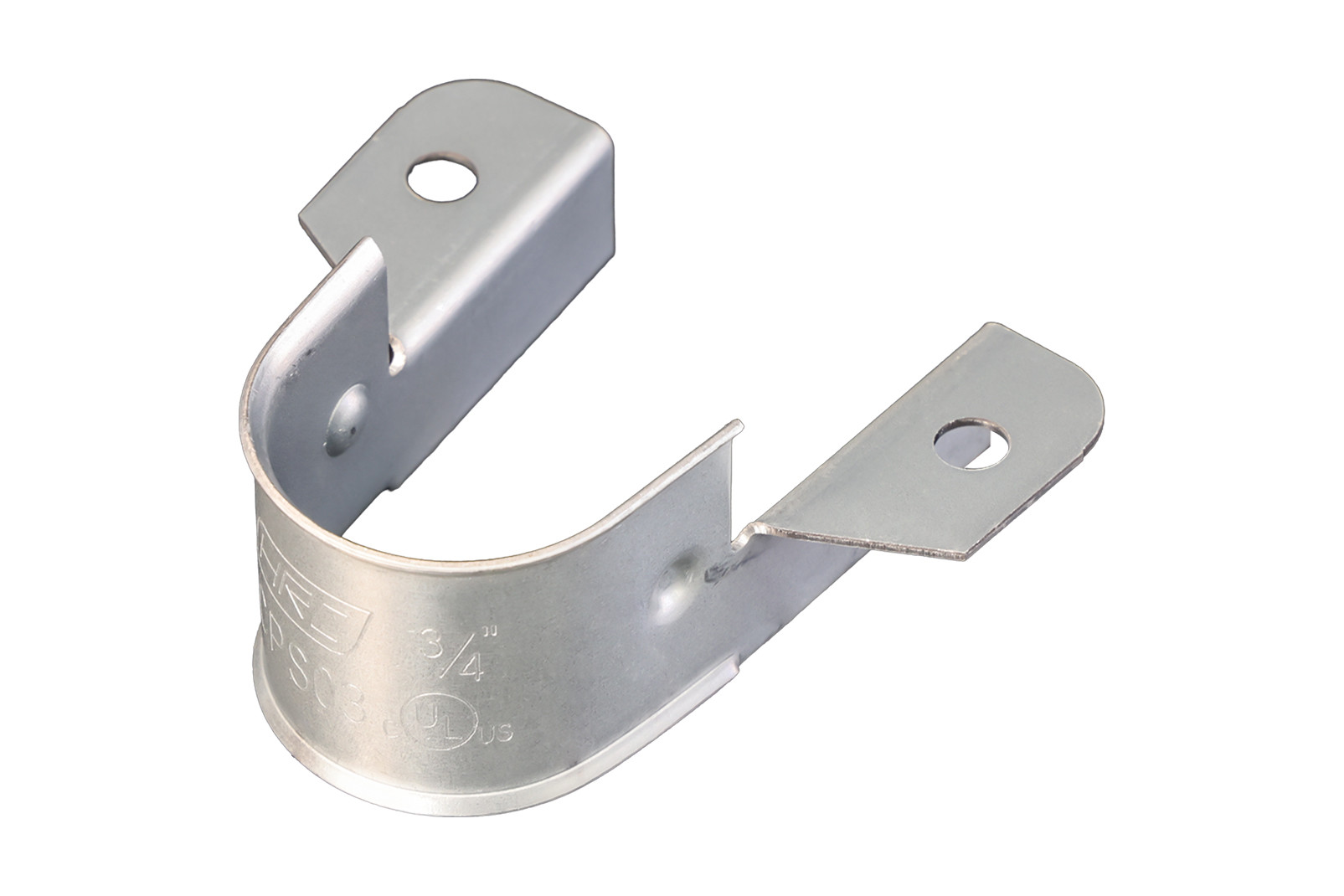

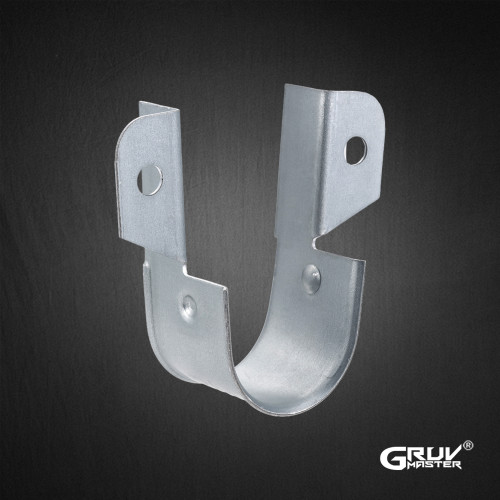

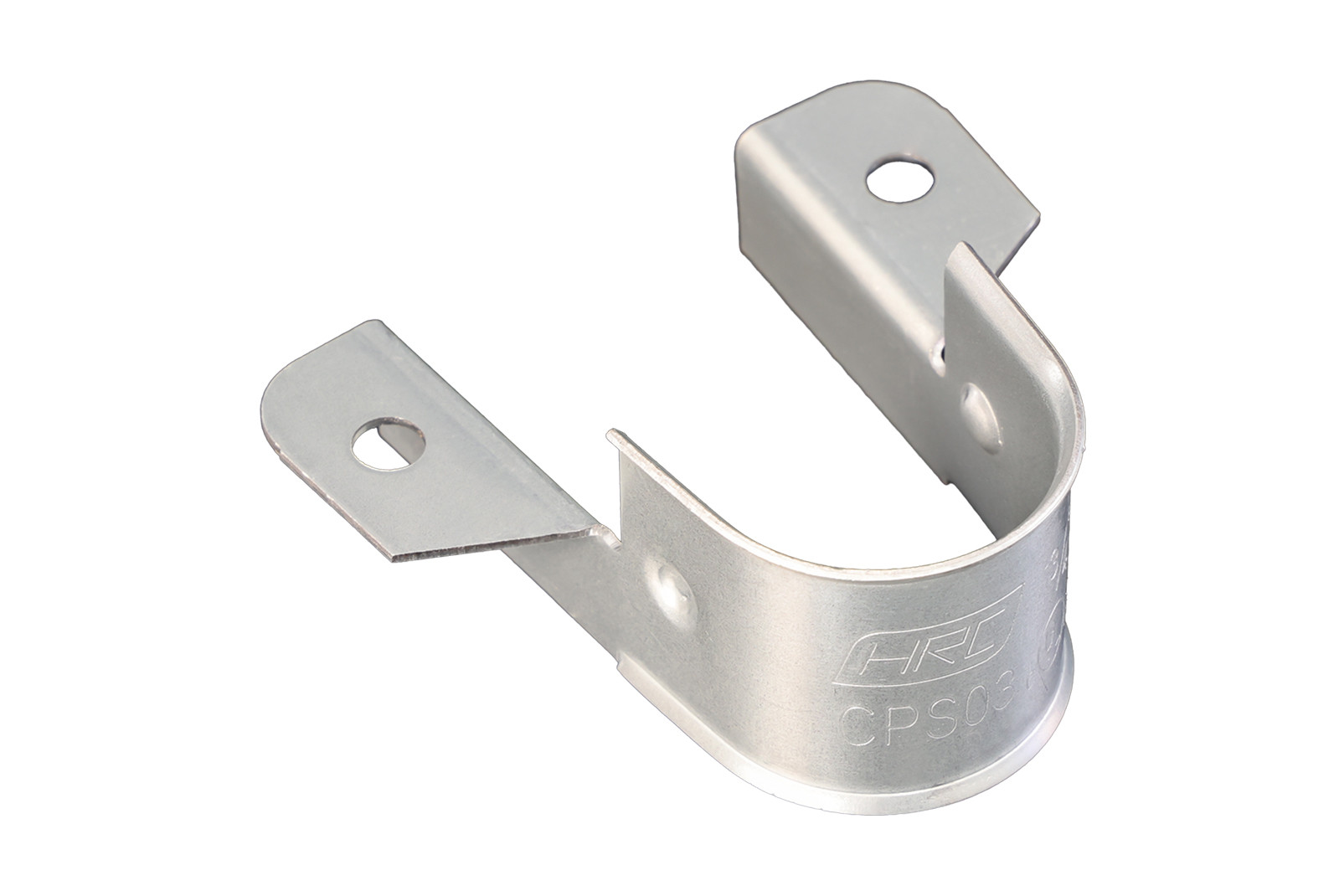

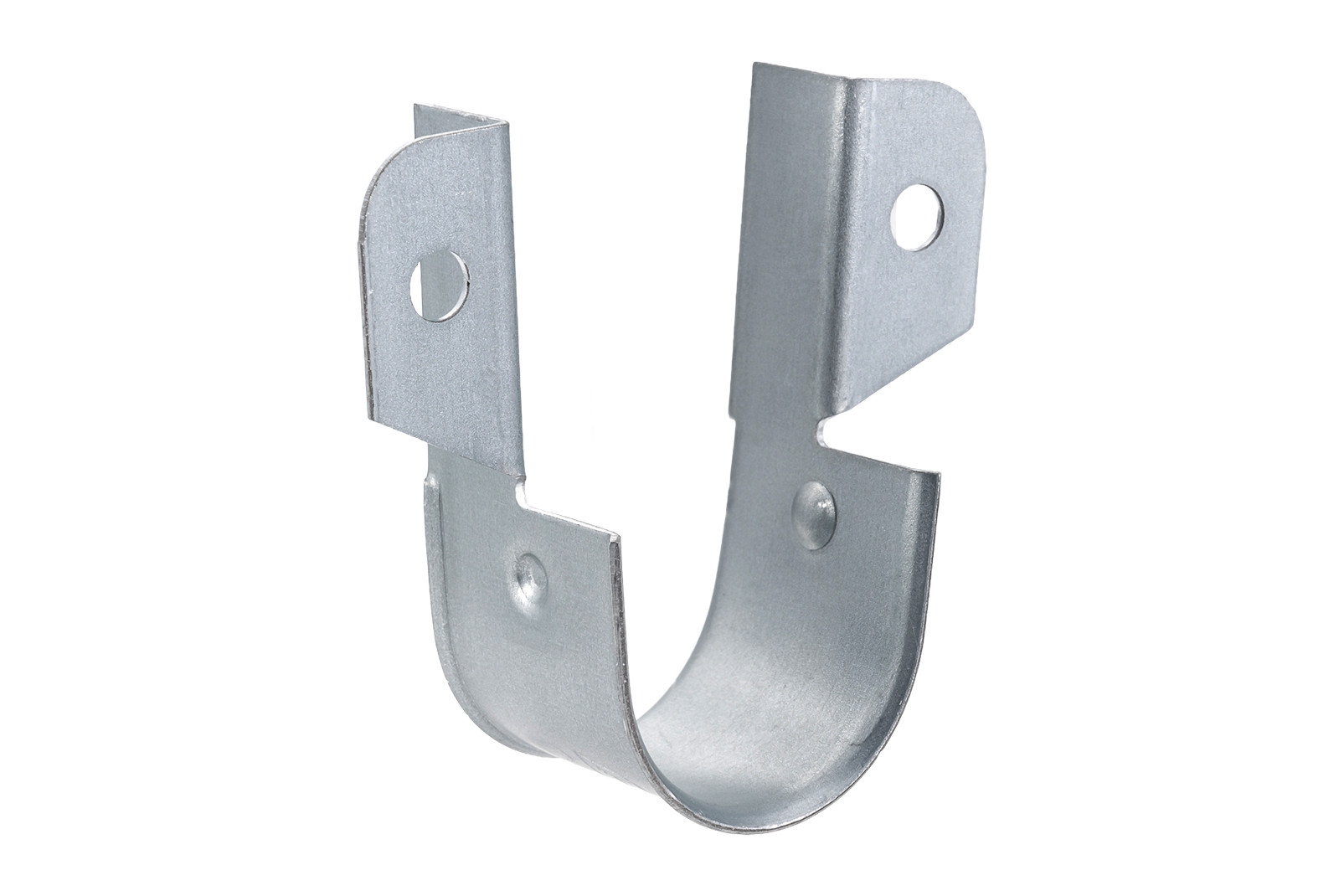

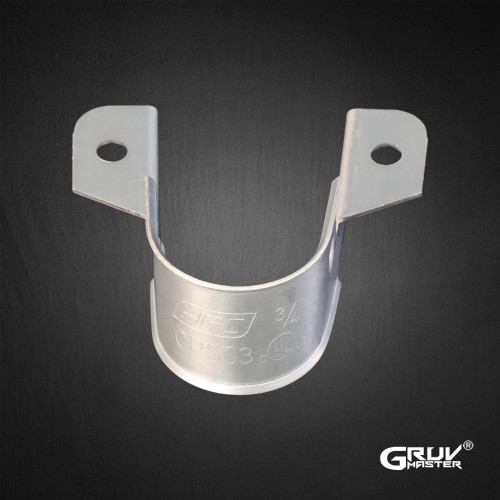

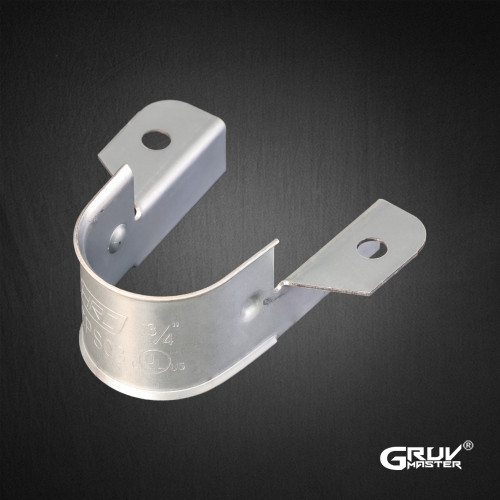

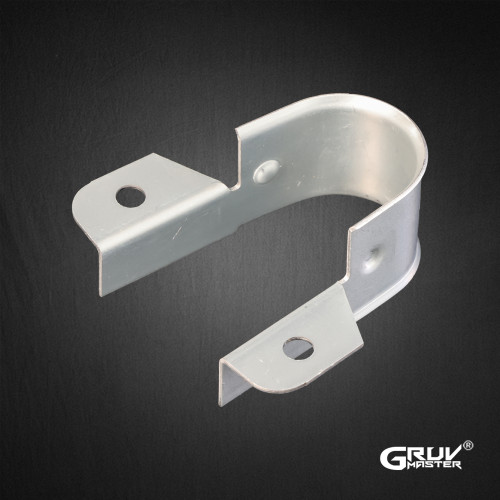

Two-Hole Side Mount Strap for CPVC Pipe
- Model
- CPS03
Item specifics
- Material
- Carbon steel
- Finish
- Pre-Galvanized (ASTM A653)
- Design
- Two-Hole 90° Side Mount
- Application
- Horizontal CPVC Pipe Support
- Mounting Type
- Side Mount
- Size Range
- 3/4" – 2"
- Corrosion Protection
- Galvanized Coating
- Function
- Pipe Support & Positioning
Review
Description

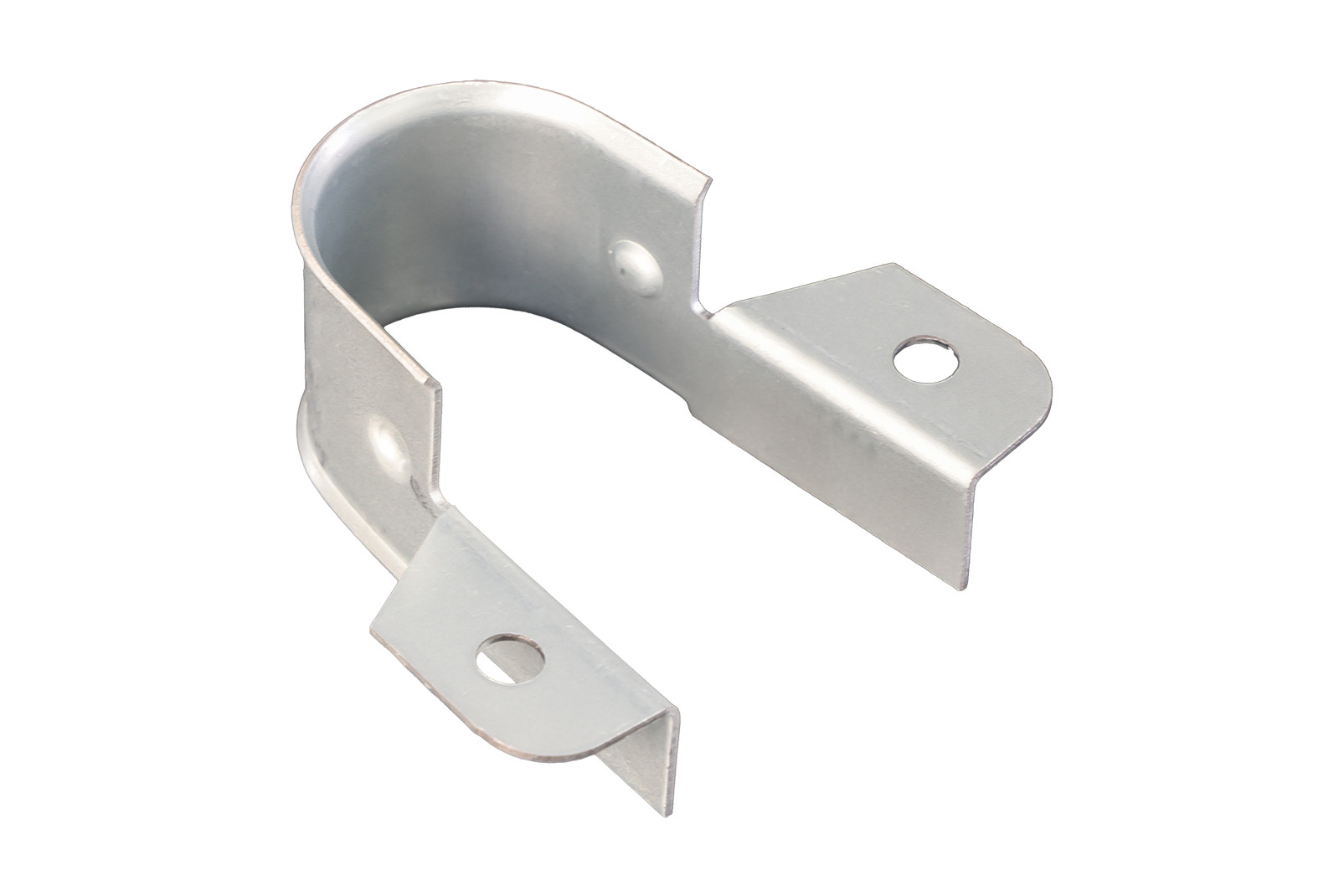

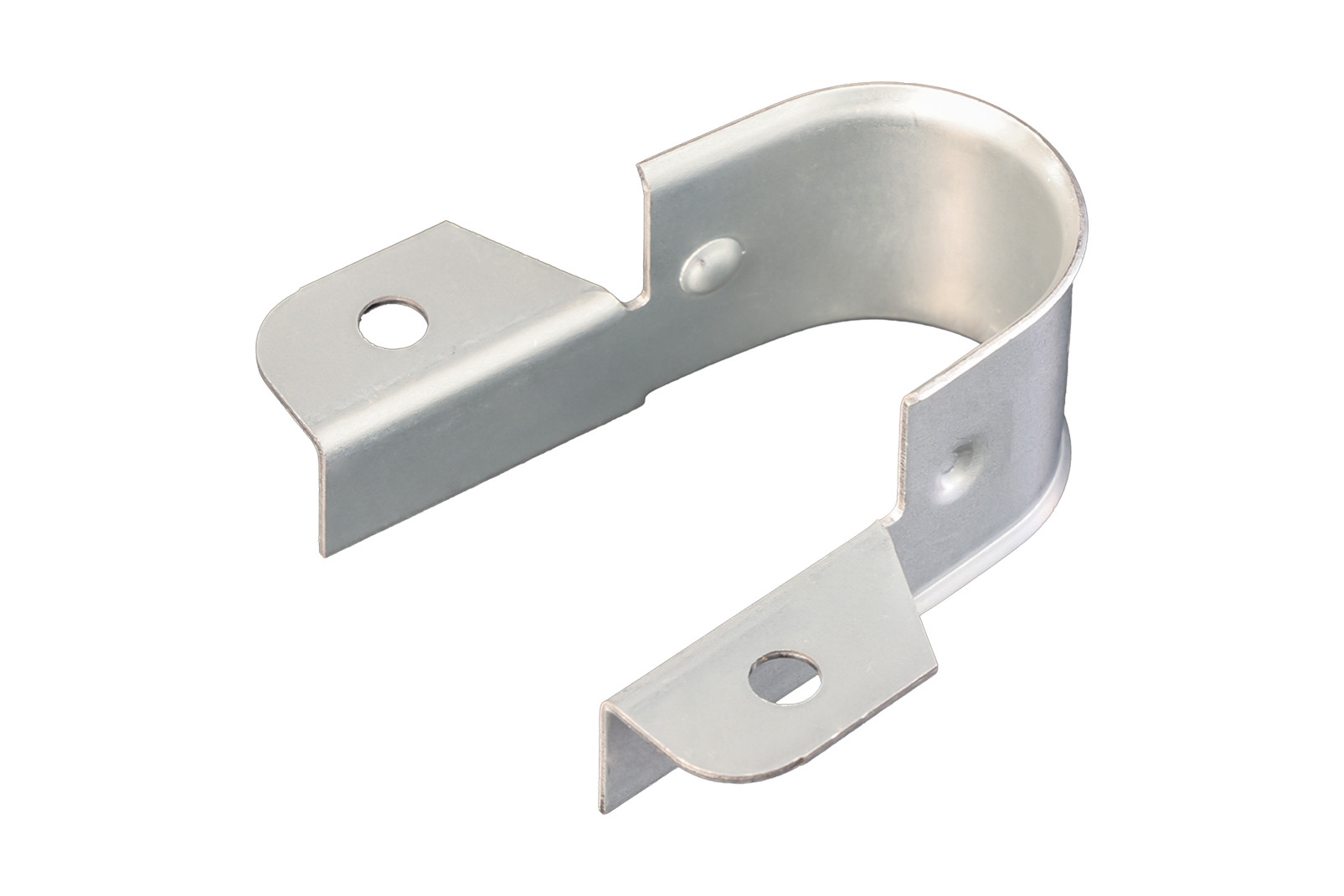

Two-Hole Side Mount Strap for CPVC Pipe
(Size Range: 3/4" – 2" | UL / ULC Listed)
Product Overview
The two-hole 90° side mount strap is designed for supporting horizontal CPVC pipes in fire protection and piping systems. It provides stable pipe positioning while allowing controlled movement during operation.
Made from carbon steel with a pre-galvanized finish, it is suitable for installation on structural wood or light steel members. The design ensures reliable support while protecting the pipe surface during long-term use.
Product Specifications
| Model: | CPS03 |
| Product Name: | Side Mount Strap |
| Material: | Carbon Steel |
| Finish: | Pre-Galvanized (ASTM A653) |
| Size Range: | 3/4" – 2" |
Application: | Horizontal CPVC Pipe Support |
Installation: | Side Mount on Wood or Light Steel Structures |
Design: | Two-Hole 90° Side Mount |
Edge Type: | Beveled Edge |
Certification: | UL Listed / ULC Listed |
Key Features
Side-Mount Installation Design
Designed for edge mounting, suitable for installation on beams, joists, or structural members.
Controlled Pipe Movement
Allows slight pipe movement to accommodate thermal expansion and system changes.
Pipe Surface Protection
Smooth beveled edges help reduce the risk of damage to CPVC pipe surfaces.
Corrosion-Resistant Finish
Pre-galvanized coating provides reliable protection in indoor environments.
Selection Guide
· Select the strap size according to the pipe outer diameter
· Ensure proper spacing between supports based on pipe type
· Choose installation surface (wood or steel) based on project conditions
· Verify compliance requirements for fire protection systems

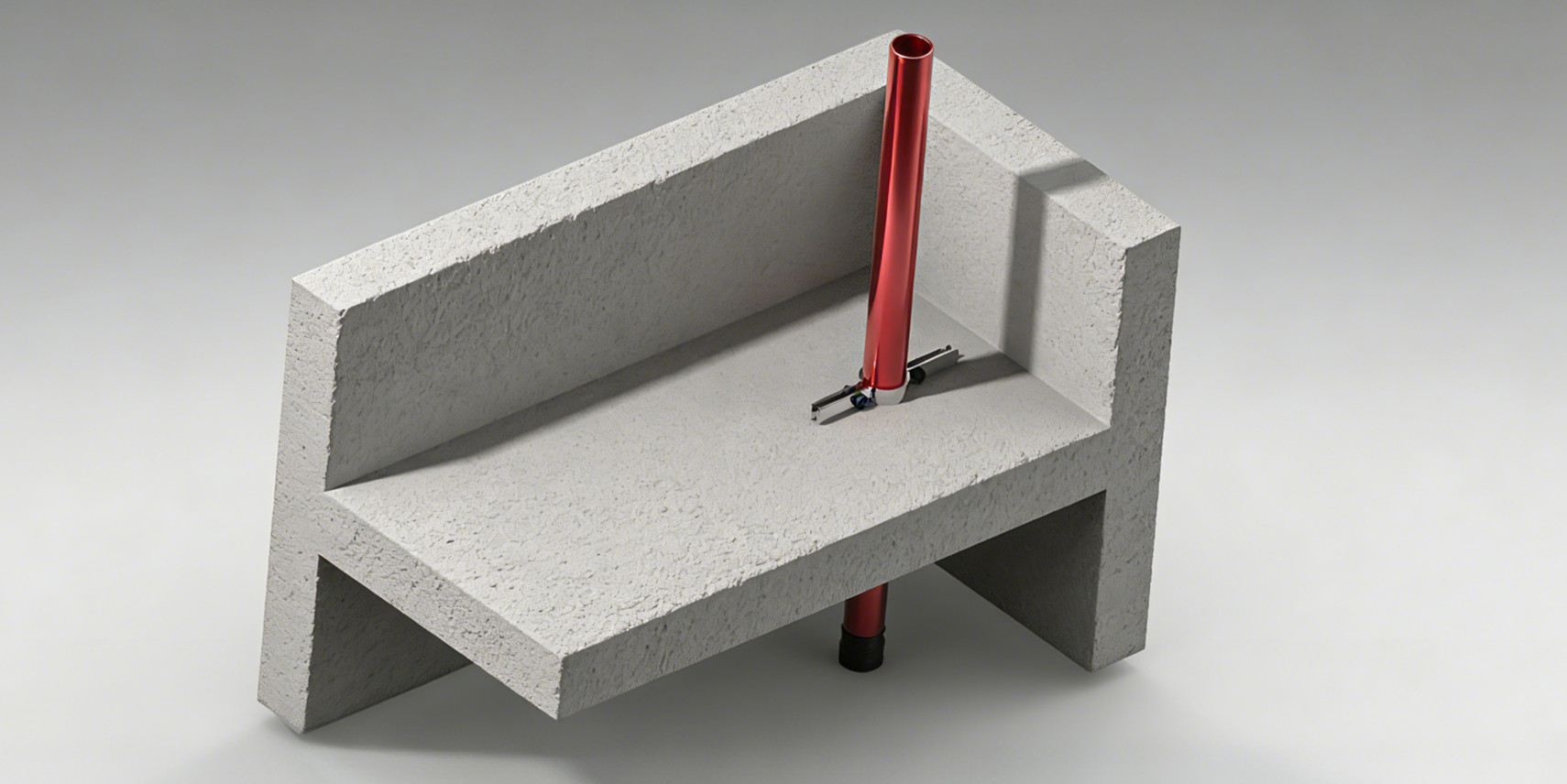

Typical Riser Clamp Installation
Standards & Certification
· UL Listed
· ULC Listed
· ASTM A653 (Material Standard)
Technical Data
Dimensions and specifications vary by pipe size. Refer to the table below for detailed parameters.
FAQ

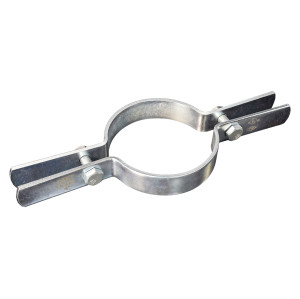

Q: What is a riser clamp used for?
A: It is used to support vertical steel pipes and help prevent downward movement in piping systems.
Q: Where is the clamp installed?
A: It is typically installed below a pipe coupling, hub, or welded support point.
Q: Can riser clamps support full pipe load?
A: Yes, when properly installed, they are designed to carry the vertical load of the pipe.
Q: What finish is recommended for outdoor use?
A: Hot-dip galvanizing is recommended for improved corrosion resistance in outdoor environments.
Contact us for detailed specifications, pricing, and project support.
