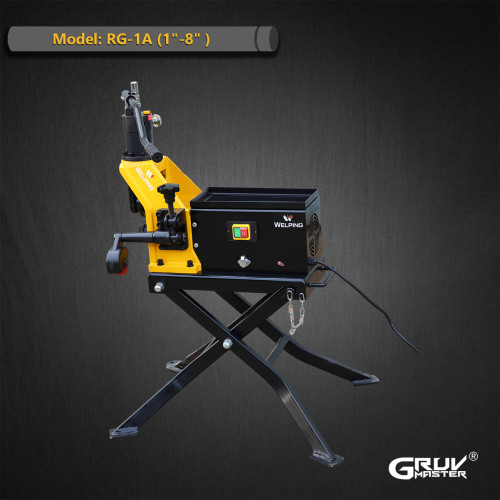

Hydraulic Electric Roll Grooving Machine with Foldable Legs for 1 Inch to 8 Inch Steel Pipes (RG-1A)
Hydraulic Electric Roll Grooving Machine with Foldable Legs for 1 Inch to 8 Inch Steel Pipes (RG-1A)
Hydraulic Electric Roll Grooving Machine with Foldable Legs for 1 Inch to 8 Inch Steel Pipes (RG-1A)
Hydraulic Electric Roll Grooving Machine with Foldable Legs for 1 Inch to 8 Inch Steel Pipes (RG-1A)
Hydraulic Electric Roll Grooving Machine with Foldable Legs for 1 Inch to 8 Inch Steel Pipes (RG-1A)
Hydraulic Electric Roll Grooving Machine with Foldable Legs for 1 Inch to 8 Inch Steel Pipes (RG-1A)
Model
RG-1A

Item specifics

Fabrication Capacity
1"-8"(DN25-DN200)SCH10/40 Steel Pipe
Max Wall Thickness
8mm
Output Speed
23RPM
Power Supply
800W
Packing Size
73*40*77cm
Gross Weight
85KG

Review

Description

Pipe Roll Grooving Machine Video
Features of Electric Hydraulic Roll Groover Machine
● Model RG-1A Electric Hydraulic Roll Grooving Machine is designed to roll grooves on steel pipes and stainless steel from 1"-8" (DN25~DN200) SCH10/SCH40.
● Appropriate for various daily tasks involving fire-fighting pipes,this roll groover is a comprehensive tool that includes a motor, hydraulic feeding pump, foot switch, and pipe stand.
● The motor's built-in high-performance gear reduction system enables a compact design and reduced noise levels.
● The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
● The roll grooving machine is equipped with a frame and swivel wheels for easy movement and transport.
● The pipe roll groover machine comes with foldable legs,easy for transportation

Pipe Roll Grooving Machine Parameter
8inch roll groover
Model:
RG-1A
Suitable materials:
Carbon Steel,SS Pipe
Fabrication Capacity:
1"-8" Pipe SCH10/SCH40
Power supply:
220V/110V
Frequency:
50HZ /60HZ
Max wall thickness:
8mm
Motor power:
800W
Output speed:
23RPM
Packing gross weight:
85kgs
Packing size:
98*66*87cm
Standard Parts of RG-1C Roll Groover
Item Number
Description
Net weight
911042
Drive roller 1"-1 1/2"(φ33-φ48)
1.10kg
911043
Drive roller 2"-6"(φ60-φ168)
1.30kg
911044
Drive roller 8" (φ219)
1.40kg
912011
Groove roller 1"-1 1/2"(φ33-φ48)
0.40kg
912012
Groove roller 2"-6"(φ60-φ168)
0.45kg
912013
Groove roller  8" (φ219)
0.45kg
998078
Pipe stand
6.90kg
998033
Pipe Stabilizer
2.80kg
998026
Foot Switch
1.50kg
Resources of RG-1A Roll Grooving Machine
RG-1A Breakdown Part List
RG-1A Roll Grooving Tool Operating and MaintenanceInstructions Manual
Roll Grooving Machine Configuration
8inch roll groover
Hydraulic pump
High quality seal parts ensure long-term field usage without leaking
Fine-machined cylinder with accurate sizes
Proper-hardened piston rod of long-life
Built-in groove depth adjusting rod
8inch roll groover
Casting part
Reinforced cast iron housing for hydraulic pump, roller sets, pipe stabilizer
Support color customization
Balanced structure withstands tough jobs
8inch roll groover
Tool Box
The toolbox above the roll groover machine body facilitates users to place wrenches and other tools ,easy stock of roll sets, tools and parts
roll groover machine
Foldable Legs
Folding legs for easy storage of the roll groove machine, also facilitating transportation for workers.
roll groover machine

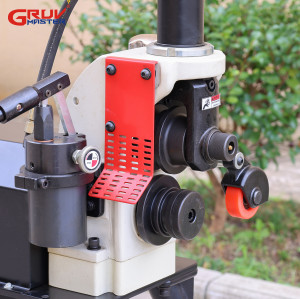

Roll Sets
Available in sizes:1"-1 1/2", 2"-6",8"
For Steel pipe 1"-8" SCH10/40
High strength steel, hardened to withstand long-time usage
roll groover machine
Pipe Stand
Quick size adjustable rods, fine-machined slots with latch
Steel ball heads,for smooth rotation,forward-backward moving of pipe
Adjustable height to suit different size pipes:1"-8"
roll groover machine
Foot Switch

roll groover machine
Pipe Stablizer

Pipe Roll Grooving Machine Comparasion
roll groover machine
