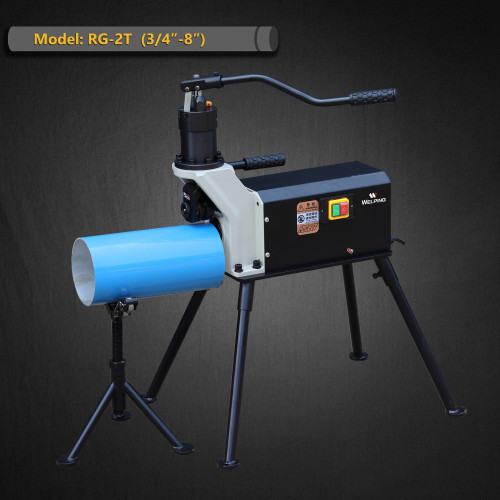

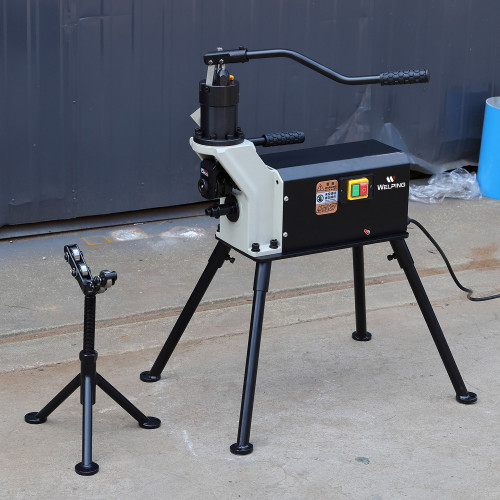

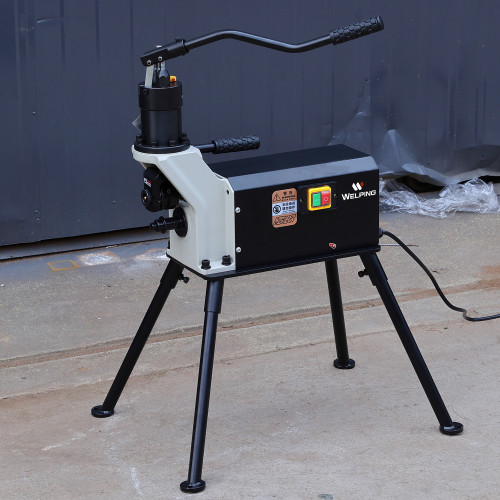

Manufactory Price Inward and Outward Roll Grooving Machine 3/4"-8" (RG-2T)
- Model
- RG-2T
Item specifics
- Fabrication Capacity
- 3/4"-8" DN20~DN200 (Outward groove)
- Fabrication Capacity
- 2"-6" DN50~DN150 (Inward groove)
- Max Wall Thickness
- Aluminum pipe (4mm)
- Max Wall Thickness
- Stainless steel pipe (3mm）
- Packing Size
- 56*26*65cm
- Gross Weight
- 49KG
- Power
- 700W
Review
Description

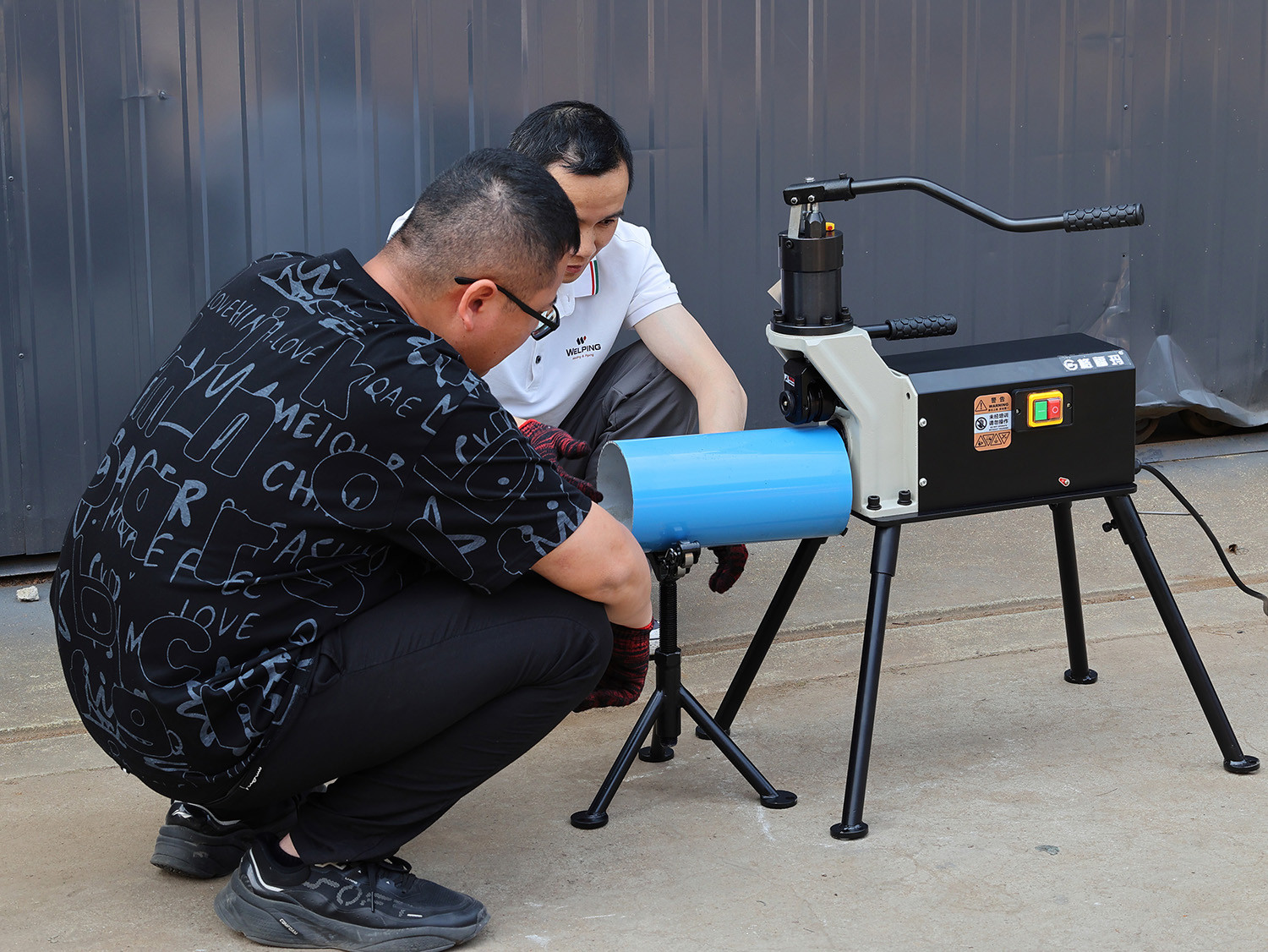

Pipe Roll Grooving Machine Video

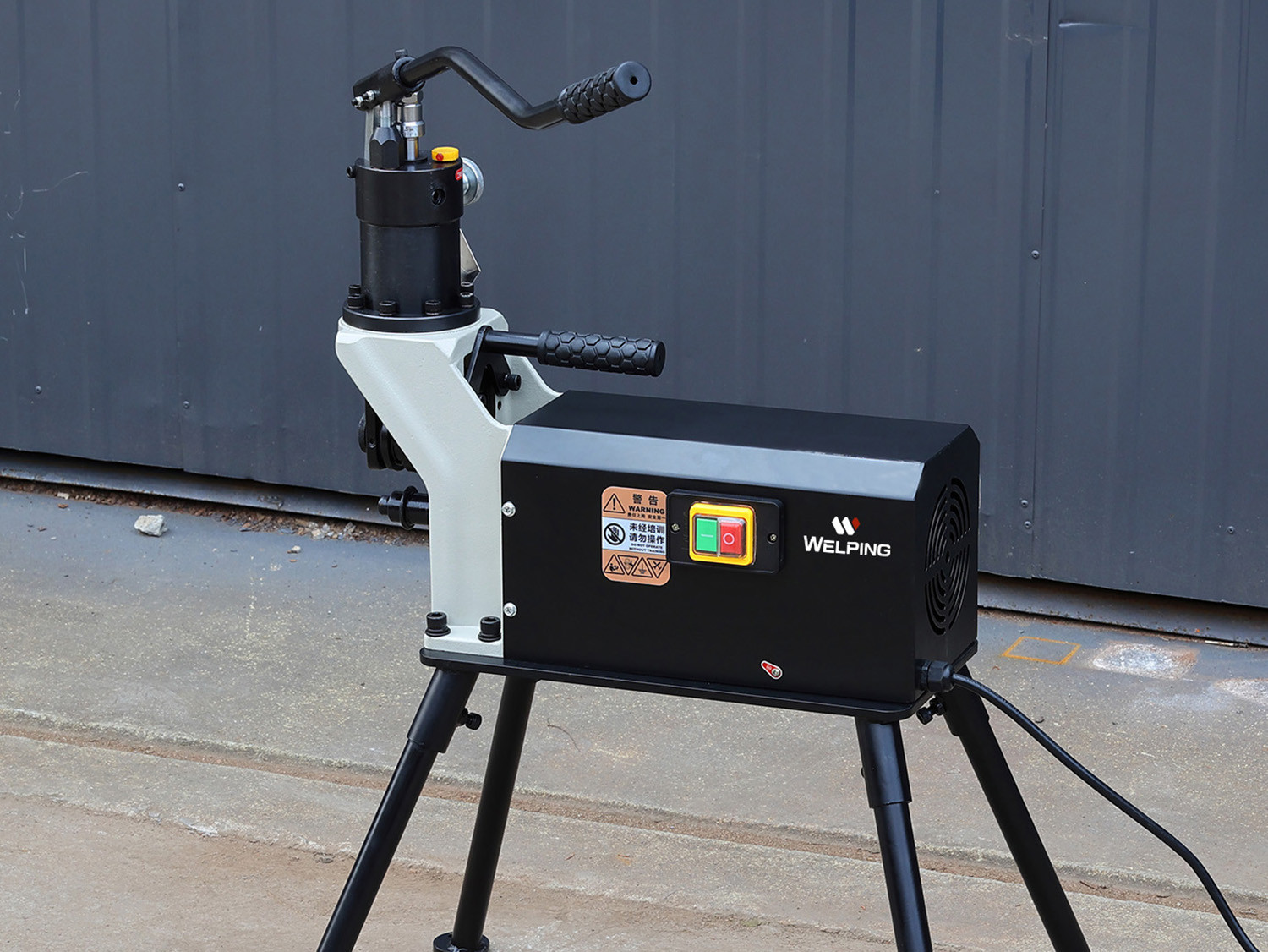

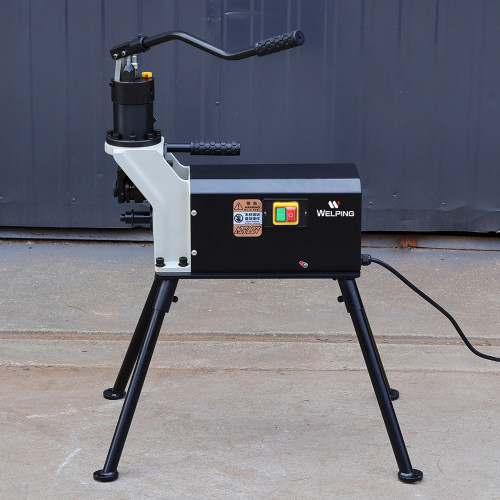

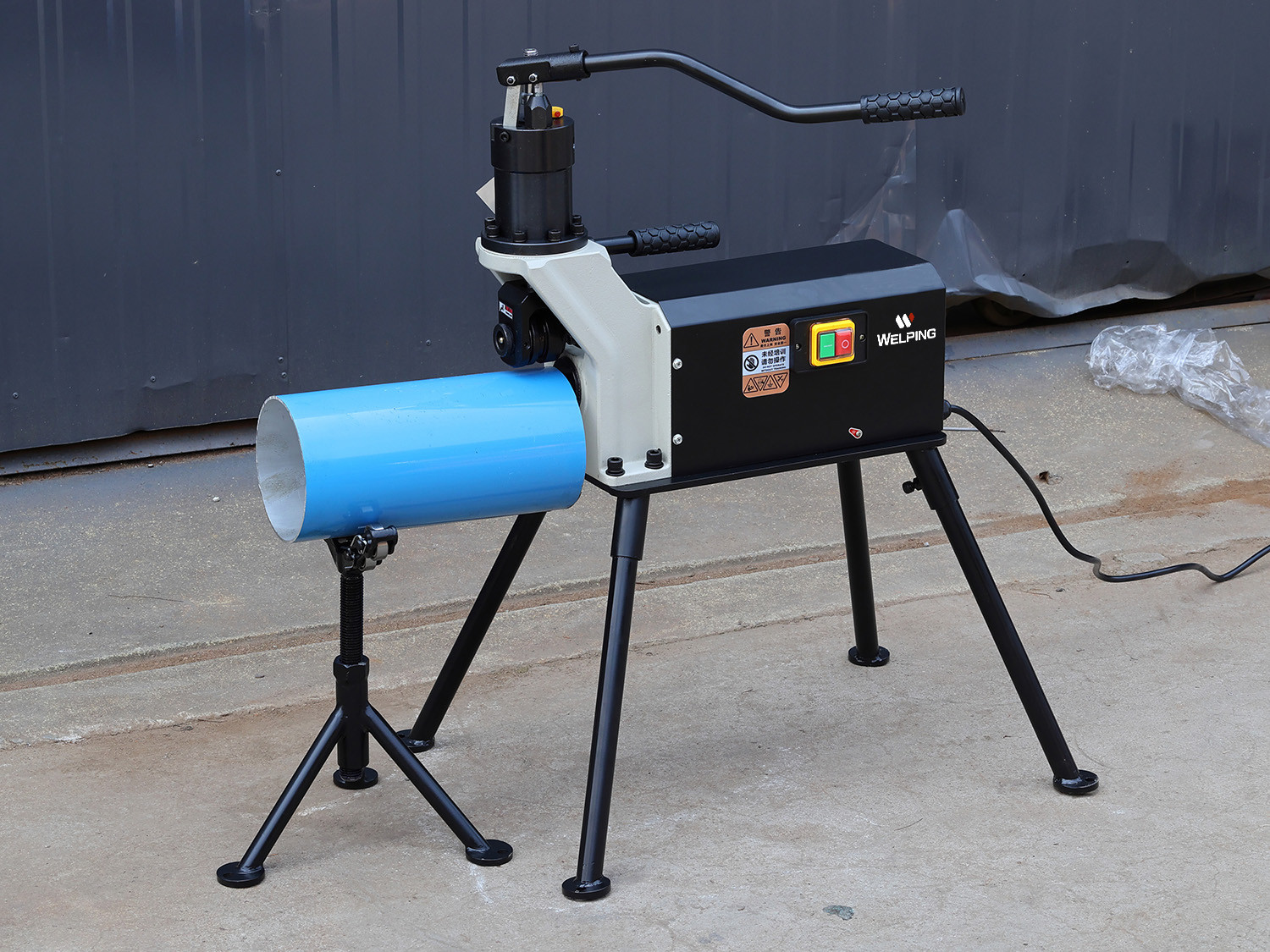

Features of Electric Hydraulic Roll Groover Machine
●Model RG-2T Electric Hydraulic Roll Grooving Machine issuitable for groove on 3/4"-8" aluminum pipes and stainlesssteel pipes.
●The adjustable locking nut can lock the height of both theprotrusion and the groove, making it suitable for batch pipelineprocessing.
●Inbuilt high-performace gear reducing motor contributescompact size and low noise.
●The unique integrated hydraulic feeding pump and groovedepth lock nut ensure high quality grooves and high efficiency.
Pipe Roll Grooving Machine Parameter
Model: | RG-2T |
Suitable materials: | Carbon Steel,SS Pipe |
Fabrication Capacity: | DN20~DN200(Protrusion)DN50~DN150(Groove) |
Power supply: | 220V/380V |
Frequency: | 50HZ /60HZ |
Max wall thickness: | 3-4mm |
Motor power: | 700W |
Output speed: | 23RPM |
Packing gross weight: | 49kgs |
Packing size: | 56*26*65cm |
Standard Parts of RG-5X Roll Groover
Item Number | Description | Net weight | ||||
912059 | Upper Drive roller ¾"~1¼" (φ20~φ32) | 1.15kg | ||||
912060 | UpperDrive roller 1½"~2"（φ40~φ50) | 1.15kg | ||||
912061 | UpperDrive roller 1½"~8" （φ40~φ200) | 1.70kg | ||||
912018 | Groove roller 2"~6"（φ50~φ150 ) | 1.70kg | ||||
911175 | Lower Drive roller ¾"~1¼" (φ20~φ32) | 1.50kg | ||||
911176 | Lower Drive roller 1½"~2" (φ40~φ50) | 1.50kg | ||||
911177 | Lower Drive roller 1½"~8" (φ40~φ200) | 1.700kg | ||||
911178
| Drive roller 2"~6" (φ50~φ150 ) | 1.70kg | ||||
Resources of RG-5X Roll Grooving Machine
Roll Grooving Machine Configuration

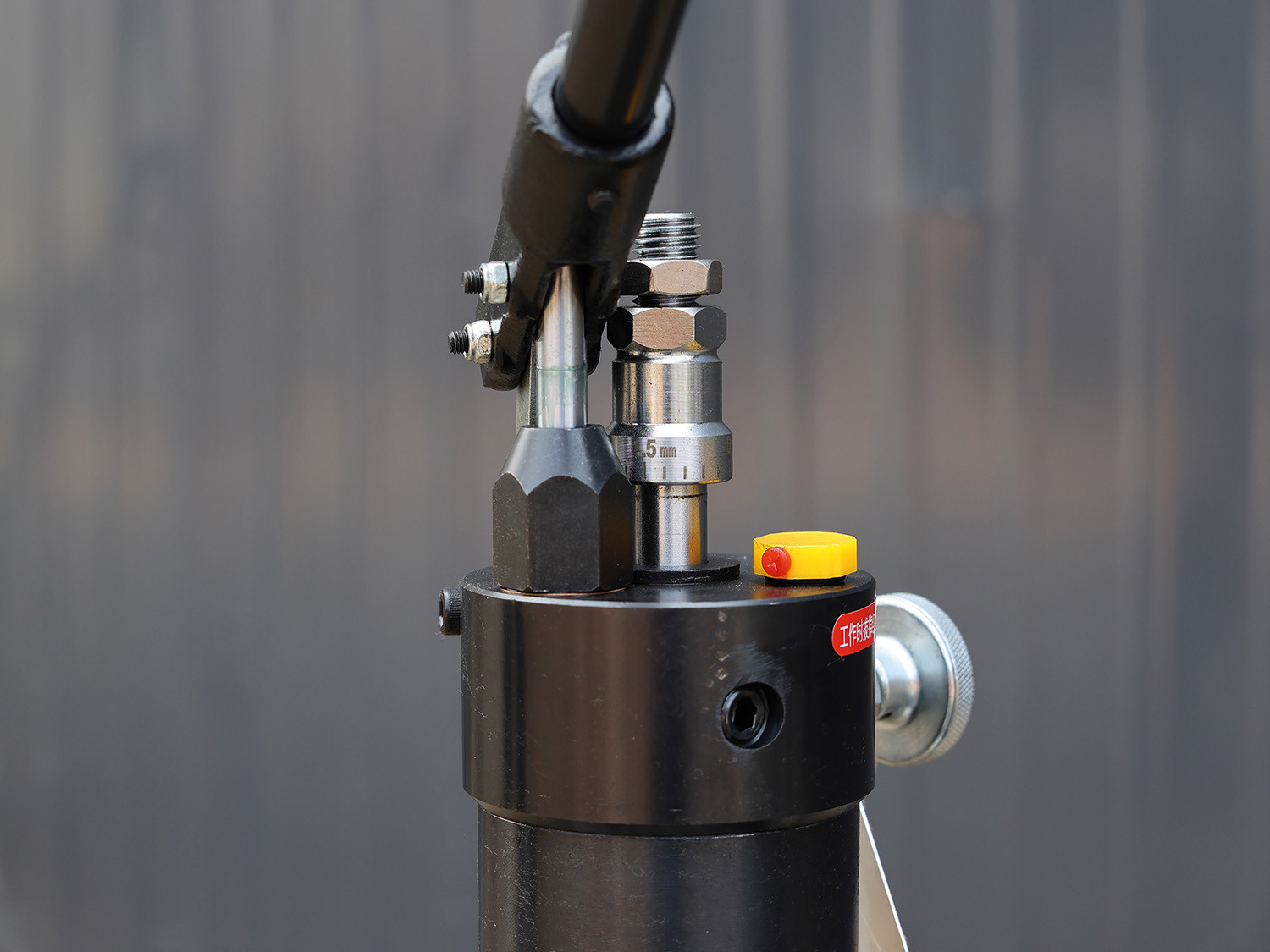

Hydraulic pump
High quality seal parts ensure long-term field usage without leaking
Fine-machined cylinder with accurate sizes
Proper-hardened piston rod of long-life
Built-in groove depth adjusting rod

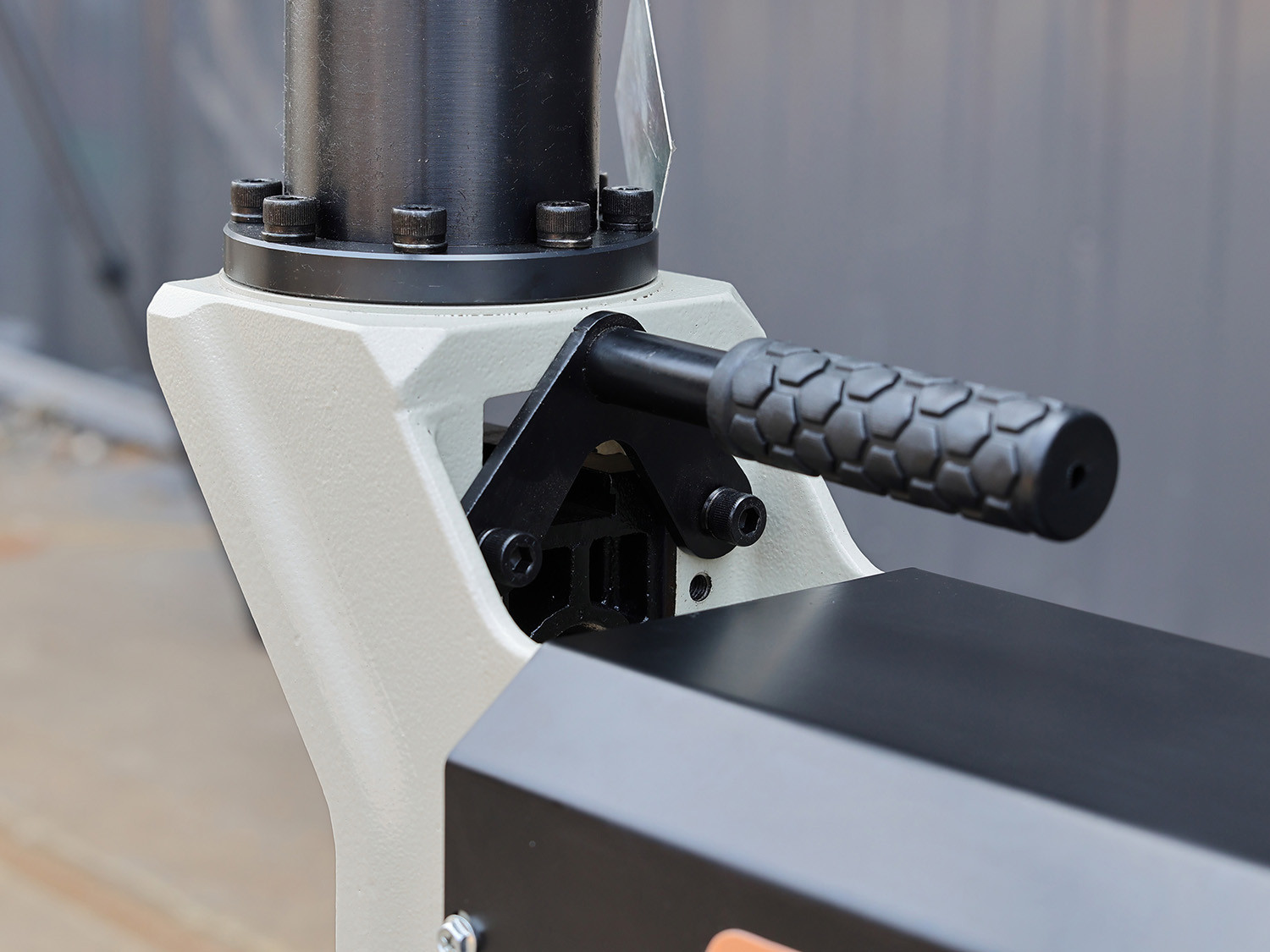

Casting part
Reinforced cast iron housing for hydraulic pump, roller sets, pipe stabilizer
Support color customization
Balanced structure withstands tough jobs

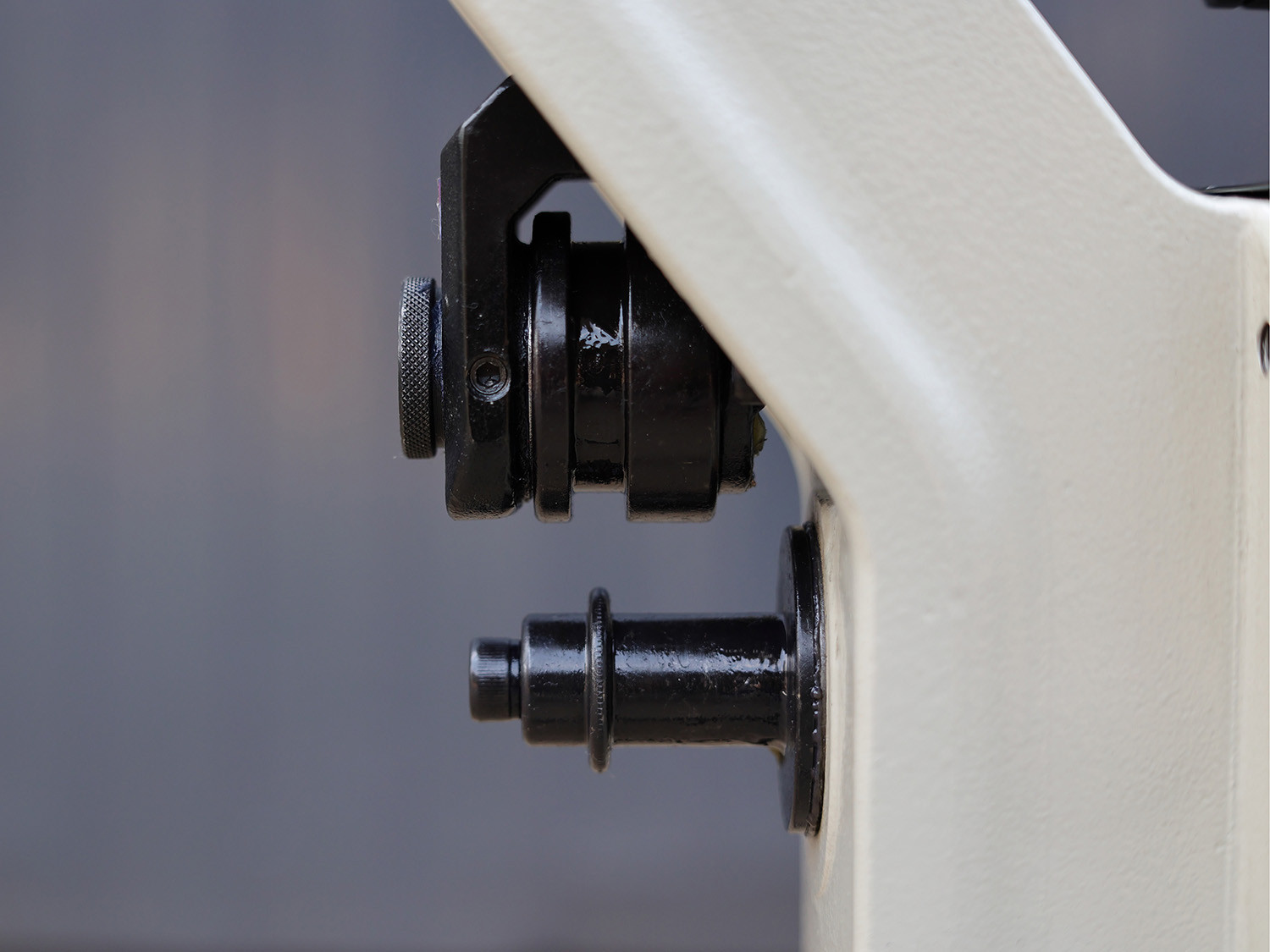

Special Roller Set
The groove is formed by pressing the upper concave wheel into the end face of the pipe, which is rotated by the motorized drive.
The groove can be machined by simply adjusting the height of the groove.
Base & Parts
Complete steel base plate High-strength, solid and deformation-resistant.
Roll Sets
Upper Drive roller ¾"~1¼" (φ20~φ32)
Upper Drive roller 1½"~2"（φ40~φ50)
UpperDrive roller 1½"~8" （φ40~φ200)
Groove roller 2"~6"（φ50~φ150 ),Drive roller 2"~6" (φ50~φ150 )
Lower Drive roller ¾"~1¼" (φ20~φ32)
Lower Drive roller 1½"~2" (φ40~φ50)
Lower Drive roller 1½"~8" (φ40~φ200)

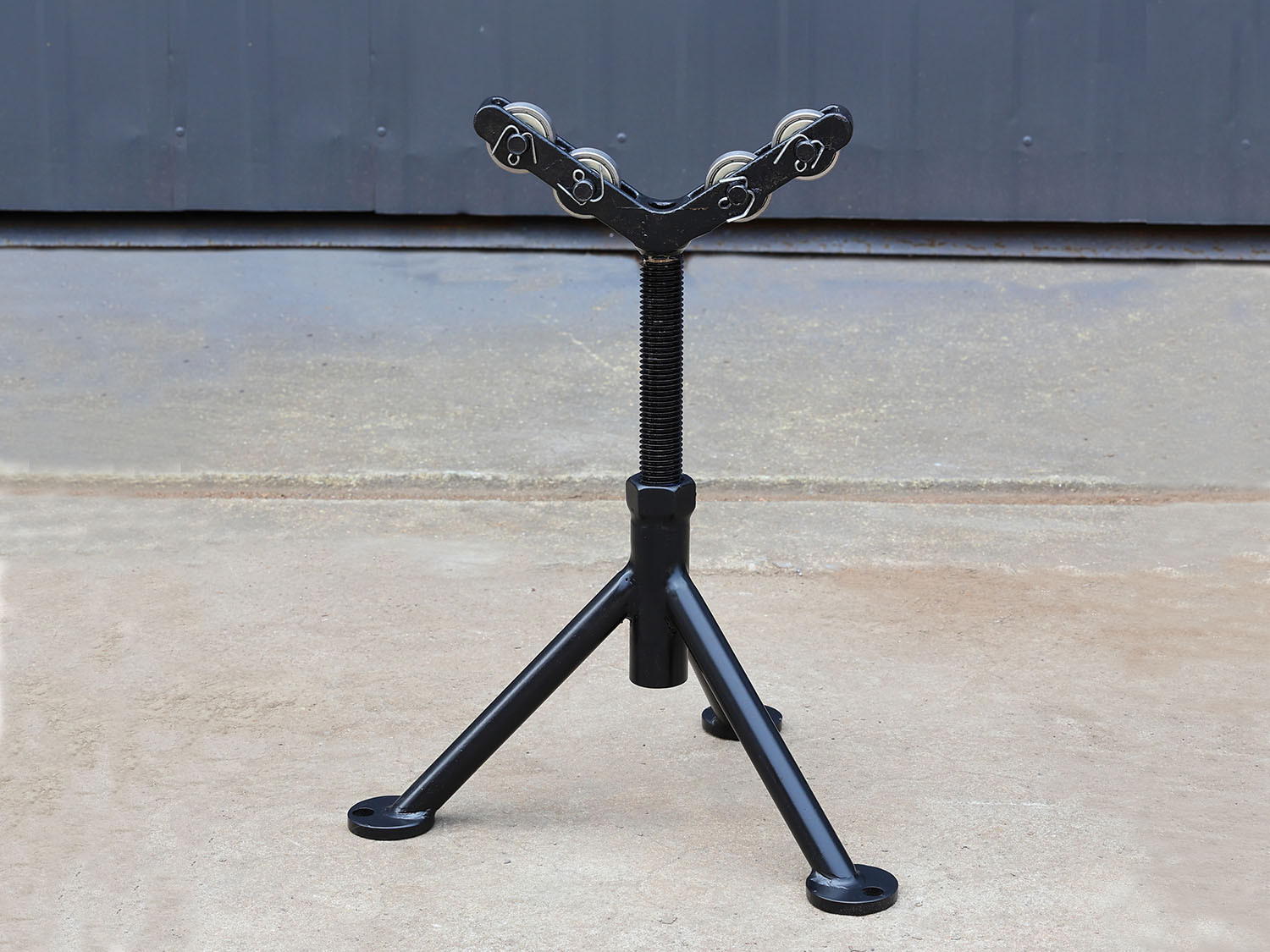

Pipe Stand
Quick size adjustable rods, fine-machined slots with latch
Steel ball heads,for smooth rotation,forward-backward moving of pipe
Adjustable height to suit different size pipes
