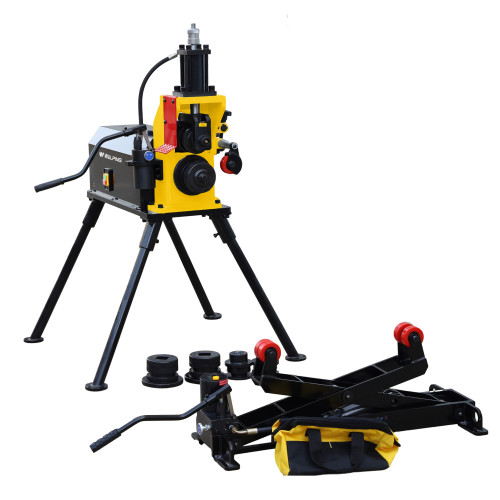

Hydraulic Roll Grooving Machine for 8 Inch to 24 Inch Steel Pipes (RG-4X)
Hydraulic Roll Grooving Machine  for 8 Inch to 24 Inch Steel Pipes (RG-4X)
Hydraulic Roll Grooving Machine  for 8 Inch to 24 Inch Steel Pipes (RG-4X)
Hydraulic Roll Grooving Machine  for 8 Inch to 24 Inch Steel Pipes (RG-4X)
Hydraulic Roll Grooving Machine  for 8 Inch to 24 Inch Steel Pipes (RG-4X)
Model
RG-4X

Review

Description

Steel Pipe Roll Grooving Machine Video
Steel Pipe Roll Grooving Machine
FEATURES OF ELECTRO-HYDRAULIC ROLLING GROOVER

● Model RG-4X Electric Hydraulic Roll Grooving Machine is designed to roll grooves on steel pipes and stainless steel from 8"-24" (DN200~DN600) SCH10/SCH40.
● Appropriate for various daily tasks involving fire-fighting pipes,this roll groover is a comprehensive tool that includes a motor, hydraulic feeding pump, foot switch, and pipe stand.
● The motor's built-in high-performance gear reduction system enables a compact design and reduced noise levels.
● The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
Steel Pipe Roll Grooving Machine Parameters
RG-3全
Model:
RG-4X
Suitable materials:
Carbon steel;Stainess steel
Capacity:
"8"-"24" steel pipe
Power supply:
220V/110V
Frequency:
50HZ/60HZ
Motor power:
2200W
Max wall thickness:
13mm
Output speed:
20RPM
Gross weight
230kg
Packing Size
110*75*99cm
Standard Parts
Catalog No.
Description
N.W (kg)
911087
Drive roller 8"~12" (Φ219~Φ325)
1.10
911088
Drive roller 14"~16" (Φ355~Φ426)
1.30
911089
Groove roller 18"~24" (Φ457~Φ630)
1.40
912029
Groove roller 8"-12" (Φ219~Φ325)
0.40
912030
Groove roller 14"-16" (Φ355~Φ426)
0.45
912031
Groove roller 18"-24" (Φ457~Φ630)
0.45
998038
Pipe stand for 8"~24" (Φ219~Φ630)
6.90
998026
Foot Switch
1.50
Scenes To Be Used
Resources
RG-4X Breakdown Part List

RG-4X Roll Grooving Tool Operating and MaintenanceInstructions Manual

Steel Pipe Roll  Grooving Machine Configuration
Hydraulic pump
High quality seal parts ensure long-term field usage without leaking
Fine-machined cylinder with accurate sizes
Proper-hardened piston rod of long-life
Built-in groove depth adjusting rod
Casting part
Reinforced cast iron housing for hydraulic pump, roller sets, pipe stabilizer
Support color customization
Balanced structure withstands tough jobs

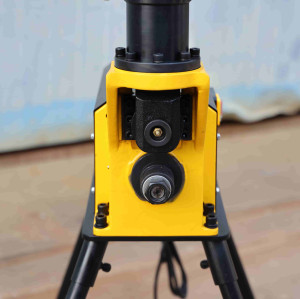

Roll Sets
Available in size: 8"-16" (DN200~DN400,Φ219~Φ426);
                            SCH10/40 Steel Pipe

For steel Pipe: 18"-24" (DN450~DN600,Φ457~Φ630)
                        SCH10/20 Steel Pipe
Pipe Stand
Quick size adjustable rods, fine-machined slots with latch
Steel ball heads,for smooth rotation,forward-backward moving of pipe
Adjustable height to suit different size pipes:2"-8"
Steel Pipe Roll Grooving Machine Comparition Chart
