Pipe Grooving Machine For Pipes SCH10/SCH40 1"-12" (RG-2S)
Pipe  Grooving Machine For Pipes SCH10/SCH40 1"-12" (RG-2S)
Pipe  Grooving Machine For Pipes SCH10/SCH40 1"-12" (RG-2S)
Pipe  Grooving Machine For Pipes SCH10/SCH40 1"-12" (RG-2S)
Pipe  Grooving Machine For Pipes SCH10/SCH40 1"-12" (RG-2S)
Pipe  Grooving Machine For Pipes SCH10/SCH40 1"-12" (RG-2S)
Model
RG-2S

Item specifics

Fabrication Capacity
1"-12" SCH10/40
Max Wall Thickness
10mm
Output Speed
23RPM
Power Supply
1100W
Packing Size
82*47*88cm
Gross Weight
130KG

Review

Description

Pipe Roll Grooving Machine Video
Features of Electric Hydraulic Roll Groover Machine
● Model RG-2S is specifically designed for rolling grooves on steel pipes and stainless steel on steel pipes and stainless steel from 1"-12" SCH10/SCH40.
● Ideal for a variety of daily tasks associated with fire-fighting pipe installation and maintenance, this roll groover is a flexible and efficient tool. Complete with a powerful motor, hydraulic feeding pump, convenient foot switch, and sturdy pipe stand, this tool is designed to handle a wide range of grooving needs with ease and precision.
● The motor's integrated high-efficiency gear reduction system enables a sleeker, more streamlined design and reduced noise emissions.
● The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
● The roll grooving machine is equipped with a frame and swivel wheels for easy movement and transport.
Pipe Roll Grooving Machine Parameter
8inch roll groover
Model:
RG-2S
Suitable materials:
Carbon Steel,SS Pipe
Fabrication Capacity:
1"-12"   Pipe SCH10/SCH40
Power supply:
220V/110V
Frequency:
50HZ /60HZ
Max wall thickness:
10mm
Motor power:
1100W
Output speed:
23RPM
Packing gross weight:
130kgs
Packing size:
82*47*88cm
Standard Parts of RG-2S Roll Groover
Item Number
Description
Net weight
911172
Drive roller 1"-1 1/2"(φ33-φ48)
1.30kg
911022
Drive roller 2"-3"(φ60-φ89)
1.30kg
911021
Drive roller 3 1/2"-6"(φ101-φ168)
1.30kg
911020
Drive roller 8"-12" (φ219-φ325)
1.40kg
912066
Groove roller 1"-1 1/2"(φ33-φ48)
0.45kg
912010
Groove roller 2"-3"(φ60-φ89)
0.45kg
912009
Groove roller 3 1/2"-6"(φ101-φ168)
0.45kg
912008
Groove roller  8"-12" (φ219-φ325)
0.45kg
998078
Pipe stand
6.90kg
998033
Pipe Stabilizer
2.80kg
998026
Foot Switch
1.50kg
Optional Parts of RG-2S Roll Groover
Item Number
Description
Net weight
912040
Groove roller for SCH10 Anti-Flare (2"-3")
0.45kg
912039
Groove roller for SCH10 Anti-Flare (3 1/2"-6")
0.45kg
912038
Groove roller for SCH10 Anti-Flare (8"-12")
0.45kg
Resources of RG-2S Roll Grooving Machine
RG-2S Breakdown Part List
RG-2S Roll Grooving Tool Operating and MaintenanceInstructions Manual
Roll Grooving Machine Configuration
8inch roll groover

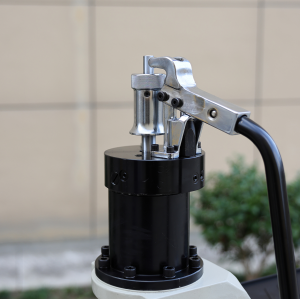

Hydraulic pump
High quality seal parts ensure long-term field usage without leaking
Fine-machined cylinder with accurate sizes
Proper-hardened piston rod of long-life
Built-in groove depth adjusting rod
8inch roll groover
Casting part
Reinforced cast iron housing for hydraulic pump, roller sets, pipe stabilizer
Support color customization
Balanced structure withstands tough jobs
8inch roll groover
Base & Parts
Pipe stabilizer ① to prevent pipe slipping; Steel tube bracket ② Full closed hydraulic feeding pump  ③ High-strength, solid and deformation-resistant.
roll groover machine
Roller Set
Strong and  precise make the groove without deformation.
roll groover machine
Roll Sets
Available in sizes: 1"- 1 1/2",2"-3",3 1/2"-6",8"-12"
For Steel pipe 1"-12",Pipe SCH10/SCH40
High strength steel, hardened to withstand long-time usage
roll groover machine
Pipe Stand
Quick size adjustable rods, fine-machined slots with latch
Steel ball heads,for smooth rotation,forward-backward moving of pipe
Adjustable height to suit different size pipes:1"-12"
roll groover machine
Foot Switch

roll groover machine
Hydraulic Feeding Pump

Pipe Roll Grooving Machine Comparasion
roll groover machine
