Model
RG-3

Review

Description

Steel Pipe Roll Grooving Machine Video
Steel Pipe Roll Grooving Machine
FEATURES OF ELECTRO-HYDRAULIC ROLLING GROOVER

● Model RG-3 Electric Hydraulic Roll Grooving Machine is designed to roll grooves on steel pipes and stainless steel from 2"-8" (DN50~DN200) SCH10/SCH40.
● Appropriate for various daily tasks involving fire-fighting pipes,this roll groover is a comprehensive tool that includes a motor, hydraulic feeding pump, foot switch, and pipe stand.
● The motor's built-in high-performance gear reduction system enables a compact design and reduced noise levels.
● The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
Steel Pipe Roll Grooving Machine Parameters
RG-3全
Model:
RG-3
Suitable materials:
Carbon steel;Stainess steel
Capacity:
"2"-"8" steel pipe
Power supply:
220V/110V
Frequency:
50HZ/60HZ
Motor power:
800W
Max wall thickness:
6mm
Output speed:
30RPM
Gross weight
47kg
Packing Size
56*26*65cm
Standard Parts
Catalog No.
Description
N.W (kg)
911074
Drive roller 2"~6" (Φ60~Φ168)
1.30
911075
Drive roller 8" (Φ219)
1.40
912018
Groove roller 2"~6" (Φ60~Φ168)
0.45
912032
Groove roller 8" (Φ219)
0.45
998028
Pipe Stand for 2"~8" (Φ60~Φ219)
2.20
Scenes To Be Used
Resources
RG-3 Breakdown Part List

RG-3 Roll Grooving Tool Operating and MaintenanceInstructions Manual

Steel Pipe Roll  Grooving Machine Configuration
Hydraulic pump
High quality seal parts ensure long-term field usage without leaking
Fine-machined cylinder with accurate sizes
Proper-hardened piston rod of long-life
Built-in groove depth adjusting rod
Casting part
Reinforced cast iron housing for hydraulic pump, roller sets, pipe stabilizer
Support color customization
Balanced structure withstands tough jobs
Roll Sets
Available in size: 2"-4" (DN50~DN100,Φ60~Φ114);8"
                            SCH10/40 Steel Pipe

For steel Pipe: 5"-8" (DN125~DN200,Φ139~Φ219)
                        SCH10/20 Steel Pipe

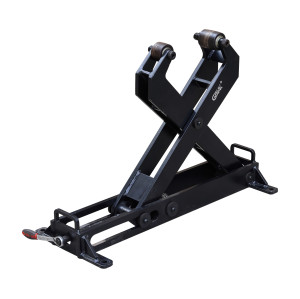

Pipe Stand
Quick size adjustable rods, fine-machined slots with latch
Steel ball heads,for smooth rotation,forward-backward moving of pipe
Adjustable height to suit different size pipes:2"-8"
Steel Pipe Roll Grooving Machine Comparition Chart
