Hydraulic Roll Grooving Machine With Carriage for 1 Inch to 8 Inch Steel Pipes (RG-1C)
- Model
- RG-1C
Item specifics
- Fabrication Capacity
- 1"-8"(DN25-DN200)SCH10/40 Steel Pipe
- Max Wall Thickness
- 8mm
- Output Speed
- 23RPM
- Power Supply
- 800W
- Packing Size
- 100*74*130cm
- Gross Weight
- 128KG
Review
Description
Pipe Roll Grooving Machine Video
Features of Electric Hydraulic Roll Groover Machine
● Model RG-1C Electric Hydraulic Roll Grooving Machine is designed to roll grooves on steel pipes and stainless steel from 1"-8" (DN25~DN200) SCH10/SCH40.
● Appropriate for various daily tasks involving fire-fighting pipes,this roll groover is a comprehensive tool that includes a motor, hydraulic feeding pump, foot switch, and pipe stand.
● The motor's built-in high-performance gear reduction system enables a compact design and reduced noise levels.
● The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
● The roll grooving machine is equipped with a frame and swivel wheels for easy movement and transport.
● With adjustable height screws, the pipe grooving machine can be stabilized on uneven ground by adjusting the height.
Pipe Roll Grooving Machine Parameter
Model: | RG-1C |
Suitable materials: | Carbon Steel,SS Pipe |
Fabrication Capacity: | 1"-8" Pipe SCH10/SCH40 |
Power supply: | 220V/110V |
Frequency: | 50HZ /60HZ |
Max wall thickness: | 8mm |
Motor power: | 800W |
Output speed: | 23RPM |
Packing gross weight: | 128kgs |
Packing size: | 100*74*130cm |
Standard Parts of RG-1C Roll Groover
Item Number | Description | Net weight | ||||
911042 | Drive roller 1"-1 1/2"(φ33-φ48) | 1.10kg | ||||
911043 | Drive roller 2"-6"(φ60-φ168) | 1.30kg | ||||
911044 | Drive roller 8" (φ219) | 1.40kg | ||||
912011 | Groove roller 1"-1 1/2"(φ33-φ48) | 0.40kg | ||||
912012 | Groove roller 2"-6"(φ60-φ168) | 0.45kg | ||||
912013 | Groove roller 8" (φ219) | 0.45kg | ||||
998078 | Pipe stand | 6.90kg | ||||
998033 | Pipe Stabilizer | 2.80kg | ||||
998026 | Foot Switch | 1.50kg | ||||
Resources of RG-1C Roll Grooving Machine
Roll Grooving Machine Configuration
Hydraulic pump
High quality seal parts ensure long-term field usage without leaking
Fine-machined cylinder with accurate sizes
Proper-hardened piston rod of long-life
Built-in groove depth adjusting rod
Casting part
Reinforced cast iron housing for hydraulic pump, roller sets, pipe stabilizer
Support color customization
Balanced structure withstands tough jobs
Base & Parts
Pipe stabilizer ① to prevent pipe slipping; Steel tube bracket ② for handy grip
Complete steel base plate ③ High-strength, solid and deformation-resistant. Tool box ④ for easy stock of roll sets, tools and parts
Adjustable Height
The roll grooving machine is equipped with a frame and swivel wheels for easy movement and transport.
With adjustable height screws, the pipe grooving machine can be stabilized on uneven ground by adjusting the height.
Roll Sets
Available in sizes:1"-1 1/2", 2"-6",8"
For Steel pipe 1"-8" SCH10/40
High strength steel, hardened to withstand long-time usage
Pipe Stand
Quick size adjustable rods, fine-machined slots with latch
Steel ball heads,for smooth rotation,forward-backward moving of pipe
Adjustable height to suit different size pipes:1"-8"
Foot Switch
Pipe Stablizer

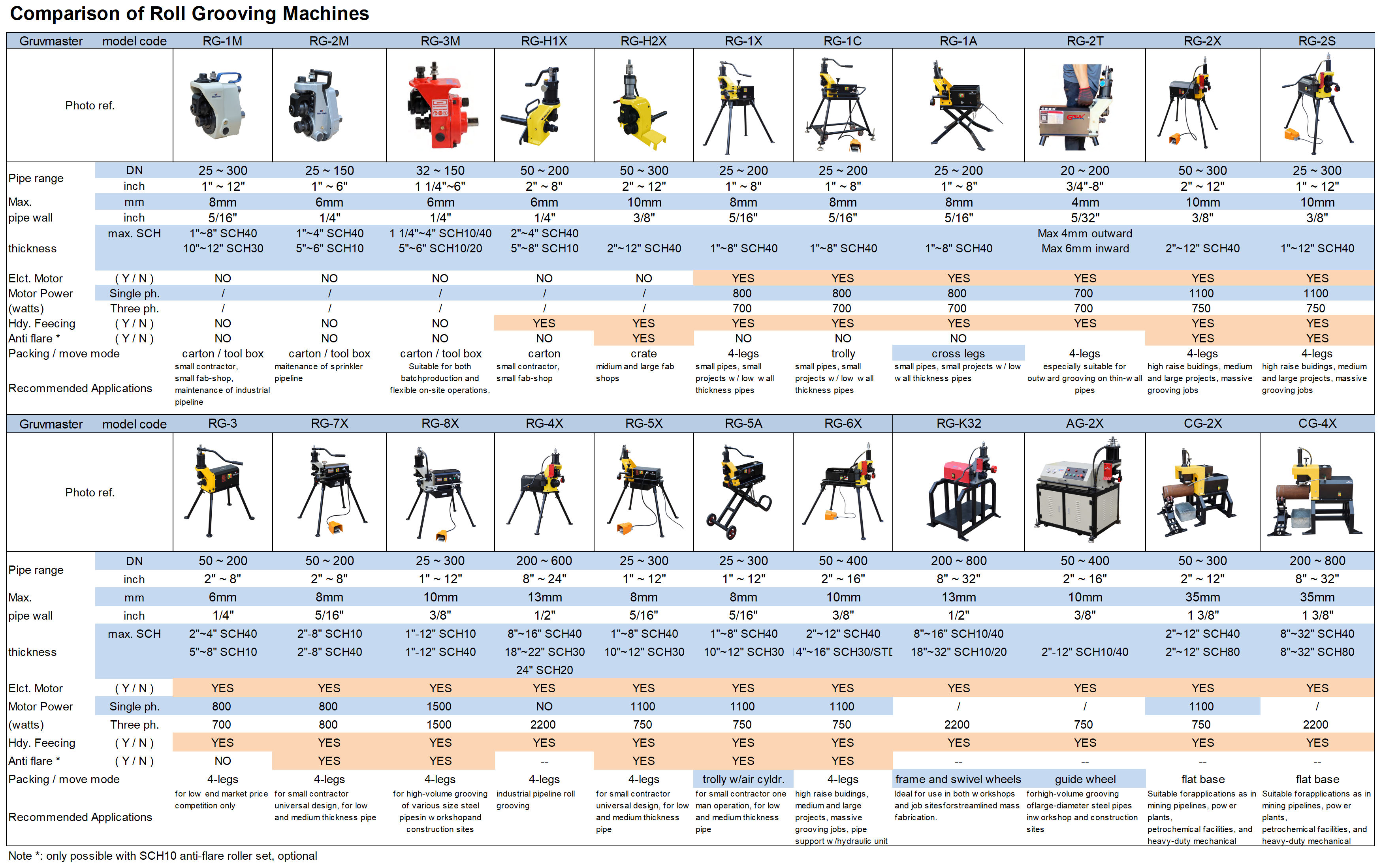

Pipe Roll Grooving Machine Comparasion
